| MOQ: | 1 set |
| Price: | 3050~3200 USD |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| 500 case | |

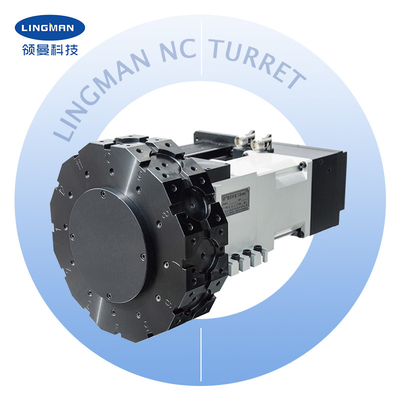

| 1. HAK33 series power tooling NC turret by direct drive motor with fast stable turning speed of disc | |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 500 sets per month |
Turret Features:
1. HAK33 series power tooling NC turret is by a direct drive motor, and the turning speed of the disc is fast and stable;
2. The power tooling shaft is driven by helical gears, high transfer moment and reliability;
3. It index and position with precise three piece tooth coupling, hydraulic locking device, high positioning accuracy;
4. The power tool base connector meets the DIN1809 standard.
TECHNICAL DATA
| Model/Data |
Center height (mm) |
Station number |
Repeatability accuracy ('') |
Time of changing tools (s) | Motor power of turret (KW) | |
| HAK33080-BMT55 | 80 | 8 | 12 | ±2 | 0.3 | 35 |
| HAK33100-BMT65 | 100 | 8 | 12 | ±2 | 0.35 | 89 |
| Model | A | B | C | D | E | H | I | K |
| HAK33080-BMT55 | 135 | 100 | 112.5 | 32 | 32 | 80 | 217 | 95 |
| HAK33100-BMT65 | 155 | 110 | 136 | 40 | 30 | 100 | 256 | 104 |
| Model | M | N | P | S | T | U | b | h1 |
| HAK33080-BMT55 | 561 | 80 | 387 | 330 | 190 | 50 | 17 | 10 |
| HAK33100-BMT65 | 628 | 95 | 447 | 380 | 220 | 55 | 20 | 10 |
Lingman Machinery Technology (Changzhou) Co., Ltd. is an enterprise focusing on the research, development, production and sales of all kinds of laser tube cutting machine power fixtures, pneumatic chucks, electric chucks, hydraulic chucks, digital chucks, power chucks, rotary hydraulic cylinders, collets, CNC indexing rotary table, tool holders, racks, gearboxes, speed reducers, laser welding machines and other machine tool accessories. The company will establish a production base covering an area of 6,000 square meters, the company has a professional technical research and development team and innovative research and development design capabilities, as well as a professional sales team and complete after-sales process to protect the rights and interests of each customer.
|
|
| MOQ: | 1 set |
| Price: | 3050~3200 USD |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| 500 case | |
| 1. HAK33 series power tooling NC turret by direct drive motor with fast stable turning speed of disc | |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 500 sets per month |
Turret Features:
1. HAK33 series power tooling NC turret is by a direct drive motor, and the turning speed of the disc is fast and stable;
2. The power tooling shaft is driven by helical gears, high transfer moment and reliability;
3. It index and position with precise three piece tooth coupling, hydraulic locking device, high positioning accuracy;
4. The power tool base connector meets the DIN1809 standard.
TECHNICAL DATA
| Model/Data |
Center height (mm) |
Station number |
Repeatability accuracy ('') |
Time of changing tools (s) | Motor power of turret (KW) | |
| HAK33080-BMT55 | 80 | 8 | 12 | ±2 | 0.3 | 35 |
| HAK33100-BMT65 | 100 | 8 | 12 | ±2 | 0.35 | 89 |
| Model | A | B | C | D | E | H | I | K |
| HAK33080-BMT55 | 135 | 100 | 112.5 | 32 | 32 | 80 | 217 | 95 |
| HAK33100-BMT65 | 155 | 110 | 136 | 40 | 30 | 100 | 256 | 104 |
| Model | M | N | P | S | T | U | b | h1 |
| HAK33080-BMT55 | 561 | 80 | 387 | 330 | 190 | 50 | 17 | 10 |
| HAK33100-BMT65 | 628 | 95 | 447 | 380 | 220 | 55 | 20 | 10 |
Lingman Machinery Technology (Changzhou) Co., Ltd. is an enterprise focusing on the research, development, production and sales of all kinds of laser tube cutting machine power fixtures, pneumatic chucks, electric chucks, hydraulic chucks, digital chucks, power chucks, rotary hydraulic cylinders, collets, CNC indexing rotary table, tool holders, racks, gearboxes, speed reducers, laser welding machines and other machine tool accessories. The company will establish a production base covering an area of 6,000 square meters, the company has a professional technical research and development team and innovative research and development design capabilities, as well as a professional sales team and complete after-sales process to protect the rights and interests of each customer.
