| MOQ: | 1 set |
| Price: | USD 750-1150 |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| 5000 case | |
| 0 degree double head power tool holder Toolholder size: BMT40/BMT45/BMT55/BMT65 Collet locking method: external lock Col | |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 500 sets per month |

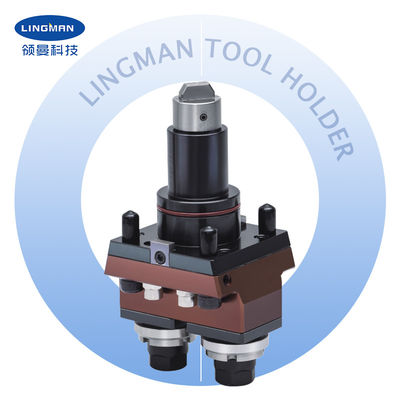

0 degree double head power tool holder Tool holder
size: BMT40/BMT45/BMT55/BMT65
Collet locking method: external lock
Collet size:ER16
With efficient cutting performance and long service life, power toolholders are the best choice for every cutting centre.
powerheads achieve significant reductions in production costs by reducing drilling and milling work time.
lingman's use of tapered roller bearings fundamentally solves the problem of weak rigidity in power tool holders.
The BMT series is a standard universal series, with the connecting shaft DIN1809 bit international standard.
quality control is strict, with the world's advanced imported testing equipment, perfect quality management system.
| Item | Double-head cutter holder | |
| 0° | 90° | |
| rotation speed | 6000Rpm | 6000Rpm |
| rpm ratio | 1:1 | 1:1 |
| 0 degree double head power tool holder | |||||||||||||||||||
| Technical Parameter | |||||||||||||||||||
| model | Locking method | A | C | D | E | F | G | H | N.W.(KG) | ||||||||||
| BMT40-O-ST | inner lock | 40 | ER16 | 40 | 76.1 | 60 | 50 | 80 | 75 | 3.6 | |||||||||
| BMT45-0-ST | outer lock | 45 | 48 | 88.2 | 58 | 58 | 95 | 75 | 3.9 | ||||||||||
| BMT55-0-ST | 55 | 56 | 64 | 64 | 103 | 85 | 4.2 | ||||||||||||
| BMT65-0-ST | 65 | 56 | 70 | 73 | 103 | 94 | 4.5 | ||||||||||||
1.High precision
2.Quick changeover
3.Extended tool life for improved economy
4. Can be used for both powered and fixed tool holders
5. Adjustable positioning slide fits into the turret cross slot for high accuracy positioning of the toolholder on the turret.
6. Repeatable positioning accuracy < 0.005 mm.
7. Positioning accuracy < 0.01 mm.
8. Higher rigidity due to larger contact surface and 4 clamping screws.
9. Improved contact surface conditions for greater torque transmission
10. High rotational speeds thanks to suitable bearing technology
11. No need for re-adjustment of the tool holder after mounting thanks to the pre-set high precision positioning slides.
Translated with www.DeepL.com/Translator (free version)
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
| Item | 0 degree driven tool holder | |
| J | Y | |
| rpm | 6000Rpm | 4000Rpm |
| RPM ratio | 1:1 | 1:1 |
| precision | 0.003mm | 0.003mm |
| 0 degree driven tool holder | |||||||||||||
| model | Locking method | A | B | C | D | E | F | G | H | N.W.(KG) | |||
| BMT40-0 | outer lock | 40 | ER20 | 68.2 | 33 | 60 | 50 | 75 | 63 | 1.5 | |||
| inner lock | 40 | ER20 | 58.5 | ||||||||||
| outer lock | 40 | ER25 | 70.2 | ||||||||||
| BMT45-0 | outer lock | 45 | ER25 | 70.2 | 33 | 58 | 58 | 85 | 75 | 2.4 | |||
| inner lock | 45 | ER25 | 59 | ||||||||||
| BMT55-0 | outer lock | 55 | ER32 | 71.3 | 34 | 64 | 64 | 97 | 85 | 3.3 | |||
| inner lock | 55 | ER32 | 63 | ||||||||||
| outer lock | 55 | ER25 | 71.3 | ||||||||||
| inner lock | 55 | ER20 | 42 | ||||||||||
| BMT65-0 | outer lock | 65 | ER40 | 74.3 | 37 | 70 | 73 | 94 | 94 | 4.2 | |||
| inner lock | 65 | ER32 | 70 | ||||||||||
| BMT75-0 | outer lock | 75 | ER40 | 82.3 | 43 | 90 | 90 | 112 | 112 | 6.7 | |||
| BMT85-0 | outer lock | 85 | ER50 | 83.8 | 42 | 100 | 100 | 125 | 125 | 8.9 | |||
1.High precision
2.Quick changeover
3.Extended tool life for improved economy
4. Can be used for both powered and fixed tool holders
5. Adjustable positioning slide fits into the turret cross slot for high accuracy positioning of the toolholder on the turret.
6. Repeatable positioning accuracy < 0.005 mm.
7. Positioning accuracy < 0.01 mm.
8. Higher rigidity due to larger contact surface and 4 clamping screws.
9. Improved contact surface conditions for greater torque transmission
10. High rotational speeds thanks to suitable bearing technology
11. No need for re-adjustment of the tool holder after mounting thanks to the pre-set high precision positioning slides.
Translated with www.DeepL.com/Translator (free version)
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
|
|
| MOQ: | 1 set |
| Price: | USD 750-1150 |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| 5000 case | |
| 0 degree double head power tool holder Toolholder size: BMT40/BMT45/BMT55/BMT65 Collet locking method: external lock Col | |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 500 sets per month |
0 degree double head power tool holder Tool holder
size: BMT40/BMT45/BMT55/BMT65
Collet locking method: external lock
Collet size:ER16
With efficient cutting performance and long service life, power toolholders are the best choice for every cutting centre.
powerheads achieve significant reductions in production costs by reducing drilling and milling work time.
lingman's use of tapered roller bearings fundamentally solves the problem of weak rigidity in power tool holders.
The BMT series is a standard universal series, with the connecting shaft DIN1809 bit international standard.
quality control is strict, with the world's advanced imported testing equipment, perfect quality management system.
| Item | Double-head cutter holder | |
| 0° | 90° | |
| rotation speed | 6000Rpm | 6000Rpm |
| rpm ratio | 1:1 | 1:1 |
| 0 degree double head power tool holder | |||||||||||||||||||
| Technical Parameter | |||||||||||||||||||
| model | Locking method | A | C | D | E | F | G | H | N.W.(KG) | ||||||||||
| BMT40-O-ST | inner lock | 40 | ER16 | 40 | 76.1 | 60 | 50 | 80 | 75 | 3.6 | |||||||||
| BMT45-0-ST | outer lock | 45 | 48 | 88.2 | 58 | 58 | 95 | 75 | 3.9 | ||||||||||
| BMT55-0-ST | 55 | 56 | 64 | 64 | 103 | 85 | 4.2 | ||||||||||||
| BMT65-0-ST | 65 | 56 | 70 | 73 | 103 | 94 | 4.5 | ||||||||||||
1.High precision
2.Quick changeover
3.Extended tool life for improved economy
4. Can be used for both powered and fixed tool holders
5. Adjustable positioning slide fits into the turret cross slot for high accuracy positioning of the toolholder on the turret.
6. Repeatable positioning accuracy < 0.005 mm.
7. Positioning accuracy < 0.01 mm.
8. Higher rigidity due to larger contact surface and 4 clamping screws.
9. Improved contact surface conditions for greater torque transmission
10. High rotational speeds thanks to suitable bearing technology
11. No need for re-adjustment of the tool holder after mounting thanks to the pre-set high precision positioning slides.
Translated with www.DeepL.com/Translator (free version)
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
| Item | 0 degree driven tool holder | |
| J | Y | |
| rpm | 6000Rpm | 4000Rpm |
| RPM ratio | 1:1 | 1:1 |
| precision | 0.003mm | 0.003mm |
| 0 degree driven tool holder | |||||||||||||
| model | Locking method | A | B | C | D | E | F | G | H | N.W.(KG) | |||
| BMT40-0 | outer lock | 40 | ER20 | 68.2 | 33 | 60 | 50 | 75 | 63 | 1.5 | |||
| inner lock | 40 | ER20 | 58.5 | ||||||||||
| outer lock | 40 | ER25 | 70.2 | ||||||||||
| BMT45-0 | outer lock | 45 | ER25 | 70.2 | 33 | 58 | 58 | 85 | 75 | 2.4 | |||
| inner lock | 45 | ER25 | 59 | ||||||||||
| BMT55-0 | outer lock | 55 | ER32 | 71.3 | 34 | 64 | 64 | 97 | 85 | 3.3 | |||
| inner lock | 55 | ER32 | 63 | ||||||||||
| outer lock | 55 | ER25 | 71.3 | ||||||||||
| inner lock | 55 | ER20 | 42 | ||||||||||
| BMT65-0 | outer lock | 65 | ER40 | 74.3 | 37 | 70 | 73 | 94 | 94 | 4.2 | |||
| inner lock | 65 | ER32 | 70 | ||||||||||
| BMT75-0 | outer lock | 75 | ER40 | 82.3 | 43 | 90 | 90 | 112 | 112 | 6.7 | |||
| BMT85-0 | outer lock | 85 | ER50 | 83.8 | 42 | 100 | 100 | 125 | 125 | 8.9 | |||
1.High precision
2.Quick changeover
3.Extended tool life for improved economy
4. Can be used for both powered and fixed tool holders
5. Adjustable positioning slide fits into the turret cross slot for high accuracy positioning of the toolholder on the turret.
6. Repeatable positioning accuracy < 0.005 mm.
7. Positioning accuracy < 0.01 mm.
8. Higher rigidity due to larger contact surface and 4 clamping screws.
9. Improved contact surface conditions for greater torque transmission
10. High rotational speeds thanks to suitable bearing technology
11. No need for re-adjustment of the tool holder after mounting thanks to the pre-set high precision positioning slides.
Translated with www.DeepL.com/Translator (free version)
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
