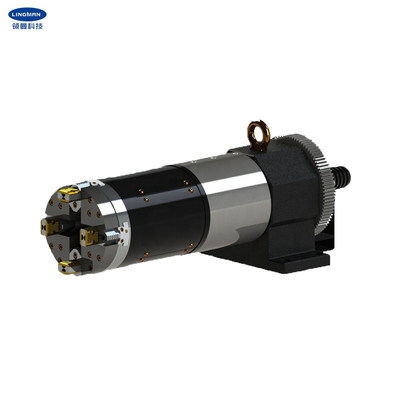

High Efficiency Pneumatic Back Rear Chuck For Laser Pipe Cutting Machine

Category:
Laser Rotary Chuck
Price:
1800-2000
Payment Method:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Specifications
Model:
W220J
Product Name:
Pneumatic Rotary Chuck
Brand:
Lingman
Claw Stroke:
70mm
Maximum Clamping Force:
4.4KN
Allowable Pressure:
0.3-1MPa
Limit Speed:
500r/min
Clamping Range:
Φ10-Φ210
Central Height:
200mm
Made In:
China
Highlight:

Pneumatic Back Rear Chuck

,

Laser Pneumatic Back Rear Chuck

,

Pipe Cutting Pneumatic Rear Chuck

Introduction

High Efficiency Pneumatic Back Rear Chuck For Laser Pipe Cutting Machine


1. Descripition


30 workers, 5000m² workshop, 15 years experience,15 years' vendor of Chinese Chuck , ISO, CE certificated, two hour reach Shanghai port,this is how our company keep good quality and competitive prices for global valued customers.



The clamping force of the laser rotary chuck is large, the clamping is stable; the adjustment is convenient, the efficiency is high; the rigidity is higher than a long clamping claw, the precision can be maintained for long time, and there is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.



The center of the laser rotary chuck is a through structure. In order to make the environment clean and hygienic, the product of this series can be equipped with a dust extraction device on the back.






2. Performance Parameters


Model number W220J
Claw stroke 70mm
Maximum clamping force 4.4KN
Alloable pressure 0.3-1MPa
Limit speed 500r/min
Clamping range Φ10-Φ210
Central height 200mm
Rotational inertia 0.7kg.m2
Rotating part weight 102kg
Whole unit weight 140kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.




3. Dimensions
High Efficiency Pneumatic Back Rear Chuck For Laser Pipe Cutting Machine

Specifications A B B1 C D E F I J L M N O P Q R S T G
W220J 300 200 204 417 200 150 250 160 198 20 36 4 5 22 M8 8-M10 18 420.5 813.5





4. Advantages

  • ​a. Full stroke design
  • b. Wide range of applications, diversification of processing profiles
  • c. High repetitive positioning accuracy
  • d. Low maintenance cost, long service life
  • e. Multiple configurations are available​

            e.1 Solid or hollow
            e.2 Comb-type or mortise-groove type claws



5. Product Line
High Efficiency Pneumatic Back Rear Chuck For Laser Pipe Cutting MachineHigh Efficiency Pneumatic Back Rear Chuck For Laser Pipe Cutting MachineHigh Efficiency Pneumatic Back Rear Chuck For Laser Pipe Cutting MachineHigh Efficiency Pneumatic Back Rear Chuck For Laser Pipe Cutting Machine




6. Our Service

  • a.We are the direct factory with good price and fast lead time.
  • b.Professional design team work with you.
  • c.Professional QC team to guarantee the high quality.
  • d.Providing OEM & ODM service.
Send RFQ
Stock:
MOQ:
1 SET
