| MOQ: | 1 SET |
| Price: | 1800-2000 |
| Standard Packaging: | Wooden box |
| Delivery Period: | 20 work days |
| Payment Method: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Capacity: | 100 sets per week |

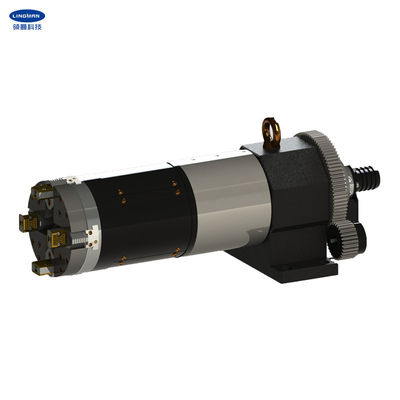

Rotary Stainless Steel Pneumatic Feeding Chuck For Laser Tube Cutting Holder
1. Descripition
30 workers, 5000m² workshop, 15 years experience,15 years' vendor of Chinese Chuck , ISO, CE certificated, two hour reach Shanghai port,this is how our company keep good quality and competitive prices for global valued customers.
Our laser rotary chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.
2. Performance Parameters
| Model number | W110J |
| Claw stroke | 20mm |
| Maximum clamping force | 3.2KN |
| Alloable pressure | 0.3-1MPa |
| Limit speed | 500r/min |
| Clamping range | Φ4-Φ100 |
| Central height | 110mm |
| Rotational inertia | 0.3kg.m2 |
| Rotating part weight | 19.8kg |
| Whole unit weight | 30kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | I | J | L | M | N | O | P | Q | R | S | T | G |
| W110J | 200 | 110 | 102 | 237 | 110 | 85 | 165 | 84 | 106 | 10 | 18 | 2 | 3 | 17 | M4 | 8-M6 | 11 | 352 | 611 |
4. Advantages
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
5. Product Line
6. Our Service
Video
Video
|
|
