W165J Laser Rotary Chuck 500r/Min Limit Speed Φ10-Φ165 Clamping Range

Category:
Laser Rotary Chuck
Price:
1800-2000
Payment Method:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Specifications
Model:
W165J
Product Name:
Pneumatic Rotary Chuck
Brand:
Lingman
Claw Stroke:
33mm
Maximum Clamping Force:
4.3KN
Allowable Pressure:
0.3-1MPa
Limit Speed:
500r/min
Clamping Range:
Φ10-Φ165
Central Height:
175mm
Made In:
China
Highlight:

W165J Laser Rotary Chuck

,

Laser Rotary Chuck 500r/Min

,

Rotary Pneumatic Power Chuck

Introduction

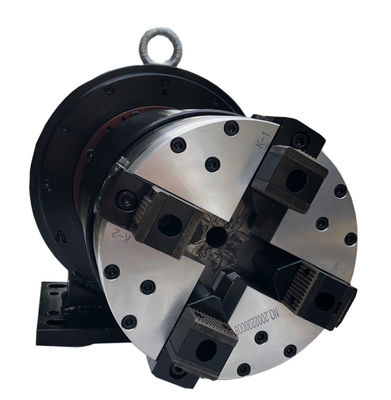

W165J Laser Rotary Chuck: 500r/Min Limit Speed, Φ10-Φ165 Clamping Range

1. Descripition


Our laser rotary chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.



The clamping force of the laser rotary chuck is large, the clamping is stable; the adjustment is convenient, the efficiency is high; the rigidity is higher than a long clamping claw, the precision can be maintained for long time, and there is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.








2. Performance Parameters


Model number W165J
Claw stroke 33mm
Maximum clamping force 4.3KN
Alloable pressure 0.3-1MPa
Limit speed 500r/min
Clamping range Φ10-Φ165
Central height 175mm
Rotational inertia 0.3kg.m2
Rotating part weight 69kg
Whole unit weight 95kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.




3. Dimensions
W165J Laser Rotary Chuck 500r/Min Limit Speed Φ10-Φ165 Clamping Range

Specifications A B B1 C D E F I J L M N O P Q R S T G
W165J 300 175 154 377 180 140 250 140 180 18 30 3 5 13 M6 8-M10 18 325 690





4. Advantages

  • ​a. Full stroke design
  • b. Wide range of applications, diversification of processing profiles
  • c. High repetitive positioning accuracy
  • d. Low maintenance cost, long service life
  • e. Multiple configurations are available​

            e.1 Solid or hollow
            e.2 Comb-type or mortise-groove type claws



5. Product Line
