1. Descripition

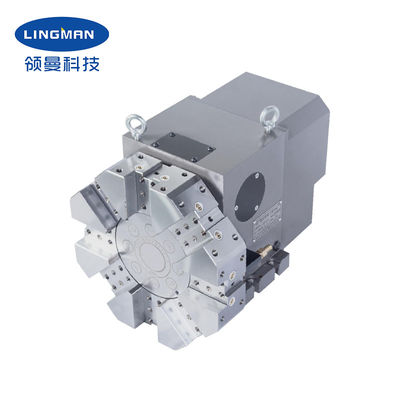

Model HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without too-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. lt is the ideal choice for processing complex parts.
2. Performance Parameters
| technical | ||||||
| turret model | HAK31063 | HAK31080 | HAK31100 | HAK31125 | HAK31160 | |
| ltem | unit | Numerical value | ||||
| Center Height | mm | 63 | 80 | 100 | 125 | 160 |
| Station Number | N | 6/8 | 6/8 | 6/8 | 6/8 | 6/8 |
| Load-bearing(including disc) | Kg | 27 | 40 | 80 | 120 | 200 |
| Max.tangential torque | N.m | 600 | 1000 | 1500 | 2500 | 4000 |
| Maximum off load moment | N.m | 7 | 15 | 40 | 60 | 120 |
| Time of changing adjoin tool | S | 2.6/2.8 | 2.8/3.0 | 3.6/3.8 | 4.0/4.2 | 4.3/4.5 |
| Repeatbility accuracy | “ | ±2 | ±2 | ±2 | ±2 | ±2 |
| Motor power | W | 120 | 120 | 4N.m | 4N.m | 6N.m |
| Motor rated voltage | V | 380 | 380 | 380 | 380 | 380 |
| N.W.(without tool disc) | Kg | 45 | 60 | 75 | 130 | 300 |
| Turret specifications and accessories | ||||||
| 6T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| 8T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| O.D.tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Facing tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Boring tool | mm | 25 | 32 | 40 | 40 | 50 |
| Note: Non-standard cutter head such as VDI and BMT can be customized, and the cooling mouth of the front tool holder is opposite to the position shown | ||||||
3. Dimensions
5. Production Line
|
|
| MOQ: | 1set |
| Price: | 1550~1700USD |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7 days |
| Payment Method: | TT, L/C, Western Union |
| Supply Capacity: | 500SETS/Month |
1. Descripition
Model HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without too-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. lt is the ideal choice for processing complex parts.
2. Performance Parameters
| technical | ||||||
| turret model | HAK31063 | HAK31080 | HAK31100 | HAK31125 | HAK31160 | |
| ltem | unit | Numerical value | ||||
| Center Height | mm | 63 | 80 | 100 | 125 | 160 |
| Station Number | N | 6/8 | 6/8 | 6/8 | 6/8 | 6/8 |
| Load-bearing(including disc) | Kg | 27 | 40 | 80 | 120 | 200 |
| Max.tangential torque | N.m | 600 | 1000 | 1500 | 2500 | 4000 |
| Maximum off load moment | N.m | 7 | 15 | 40 | 60 | 120 |
| Time of changing adjoin tool | S | 2.6/2.8 | 2.8/3.0 | 3.6/3.8 | 4.0/4.2 | 4.3/4.5 |
| Repeatbility accuracy | “ | ±2 | ±2 | ±2 | ±2 | ±2 |
| Motor power | W | 120 | 120 | 4N.m | 4N.m | 6N.m |
| Motor rated voltage | V | 380 | 380 | 380 | 380 | 380 |
| N.W.(without tool disc) | Kg | 45 | 60 | 75 | 130 | 300 |
| Turret specifications and accessories | ||||||
| 6T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| 8T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| O.D.tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Facing tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Boring tool | mm | 25 | 32 | 40 | 40 | 50 |
| Note: Non-standard cutter head such as VDI and BMT can be customized, and the cooling mouth of the front tool holder is opposite to the position shown | ||||||
3. Dimensions
5. Production Line
