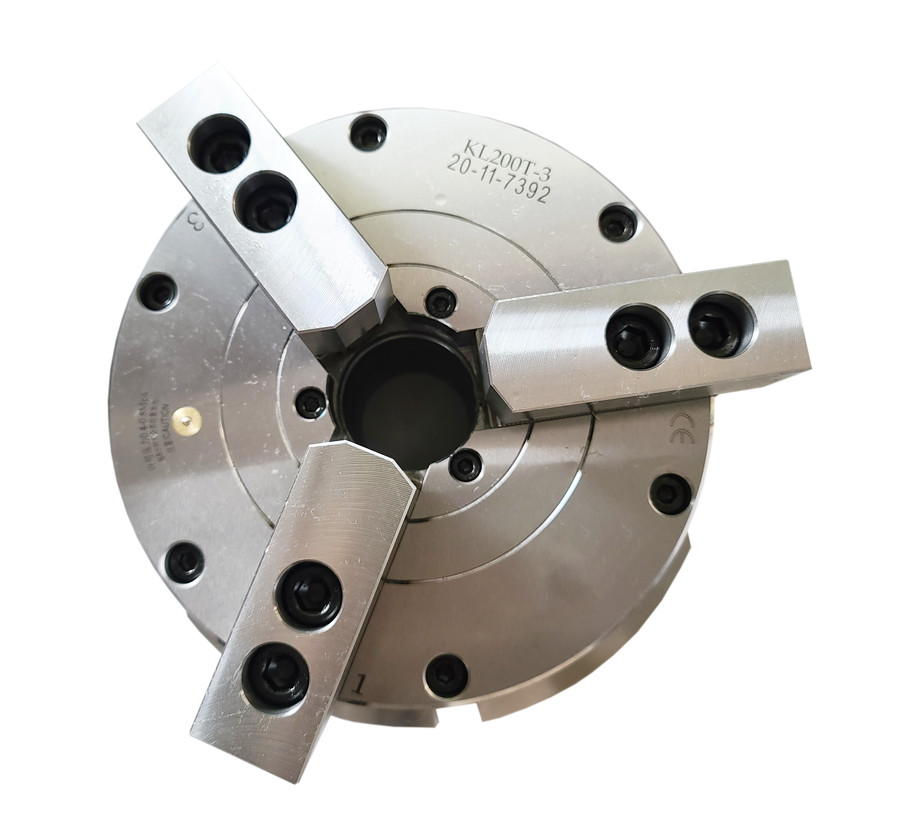

Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine

Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine
Features Gallery Product Description Request A Quote
Jaw Stroke: 4.2mm
Maximum Static Clamping Force: 42.3KN
Maximum Static Holding Force: 23.5KN
Permissilbe Pressure: 0.4-0.8Mpa
Clamping Range: 2-170mm
Holding Range: 20-180mm
Weight: 15.7kg

Three Jaw Tube Chuck


Central Hollow Tube Chuck


170mm three jaw chuck in lathe machine

Basic Infomation
Place of Origin: CHINA-CHANGZHOU
Brand Name: LINGMAN
Model Number: CK160S-3
Payment & Shipping Terms
Packaging Details: wooden box,packing measurements depend on products.
Delivery Time: 3-10 work days
Payment Terms: T/T
Product Description




CK160S-3 Stainless steel Double-action Pnuematic chuck for CNC lathe machine


The three-jaw pneumatic chuck uses a chuck wrench to rotate any one of the three umbrella teeth on the circumference. Thereby driving the plane thread to rotate and driving the three jaws to move together, playing the role of self-centering and clamping the workpiece; from the mechanical structure, the three umbrella teeth of the three-jaw pneumatic chuck have the same function, but after careful inspection, three The accuracy of each bevel gear clamping workpiece is not the same, and the difference is also large.

Because the middle of the chuck is empty and it can process the bar material and preform workpiece.


Spec Jaw stroke(mm) Maximum Static Clamping force(KN) Maximum Holding force(KN) Permissible Pressure(Mpa) Clamping range(mm) Holding range(mm) Weight(KG)
CK130S-3 3.6 25 16 0.4-0.8 3-140 15-140 8.8
CK160S-3 4.2 42.3 23.5 0.4-0.8 2-170 20-180 15.7
CK200S-3 5 62.5 35.6 0.4-0.8 5-210 20-240 24.9
CK250S-3 5.7 75 39.5 0.4-0.8 10-260 30-280 36.7
CK320S-3 8.5 128 73 0.4-0.8 10-350 40-360 68
CK400S-3 12 175 98 0.4-0.8 15-420 50-430 140




Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine 0Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine 1Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine 2Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine 3




Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine 4Central Hollow Tube Chuck Three Jaw Chuck In Lathe Machine 5
