Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine

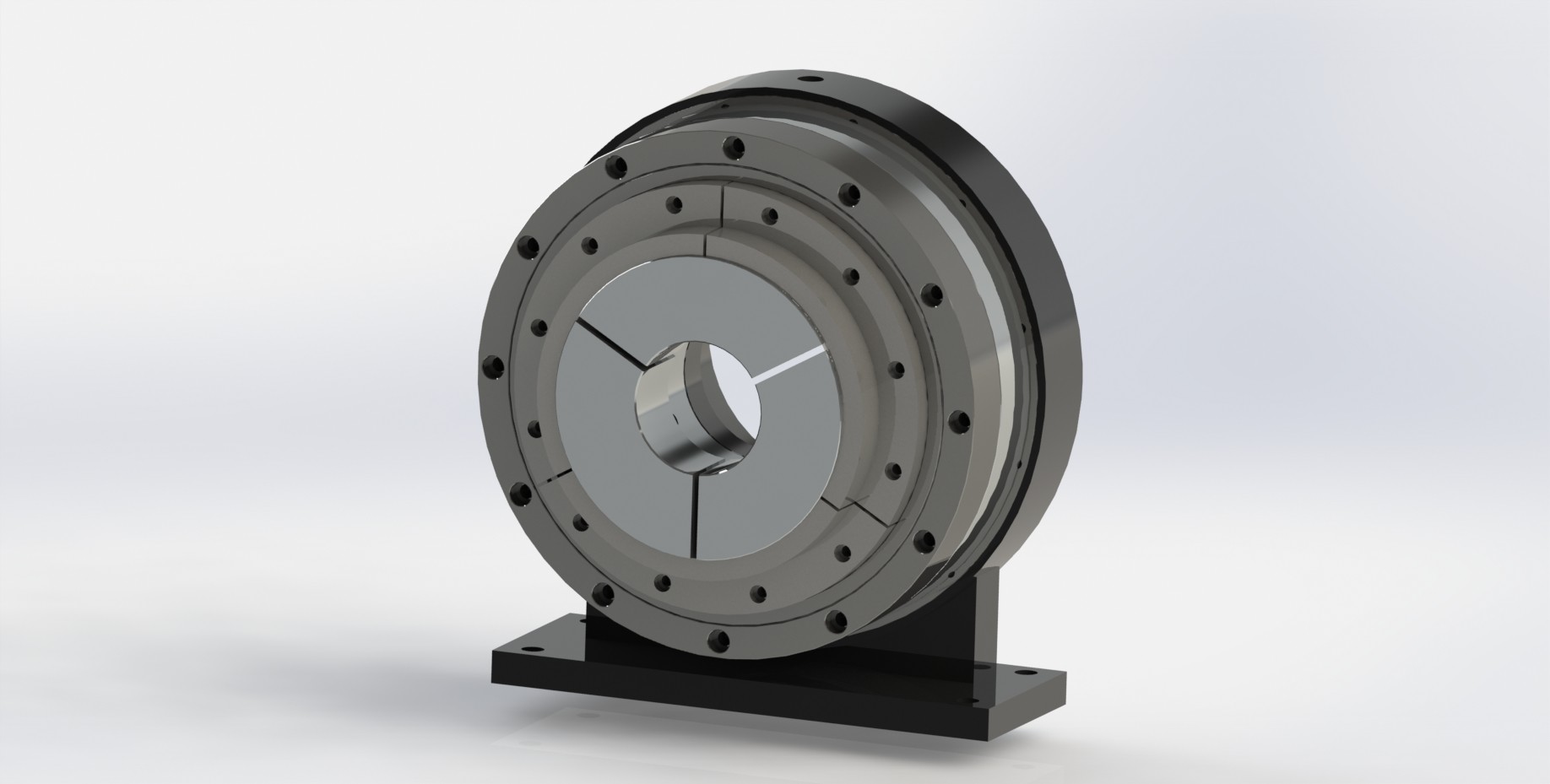

Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine

MOQ: 1
Price: $2700-5000
Standard Packaging: wooden box,packing measurements depend on products.
Delivery Period: 3-10 work days
Payment Method: T/T
Detail Information
Place of Origin
CHINA-CHANGZHOU
Brand Name
LINGMAN
Model Number
G125TJ
Claw Stroke:
5.7mm
Maximum Clamping Force:
15KN
Clamping Range:
Φ100-Φ125mm
Central Height:
230mm
Rotational Inertia:
2.42Kg.㎡
Rotating Part Weight:
133kg
Whole Unit Weight:
175kg
Model:
G125TJ
Feature:
High Accuracy
Highlight:

Rotary pneumatic collet chuck

,

125mm pneumatic collet chuck

,

15KN rotary collet chuck

Product Description

PRODOCUT OVERWIEW:





G125TJ Rotary Pnuematic collet chuck holder for laser cutting machine

Application:



Laser special tube cutting machine full stroke main chuck is suitable for laser tube cutting equipment, rotary cutting round tube, square tube, oval tube, etc.



The company's developed chucks and fixtures are widely used in the military industry, aerospace, textile machinery, medical equipment, fitness equipment, auto and motorcycle accessories, laser cutting, petrochemical machinery, agricultural machinery, and other civilian

machinery.



Technical features:



1. Large through hole pneumatic pressure maintaining type four-claw double;



2. Adopt the advanced alloy steel material, all with the surface by surface



hardening treatment, in order to improve the accuracy and durability;



3. Matching surfaces of all parts hardened, ground and lubricated directly;



4. Can clamp the round tubes, square tubes, rectangular tubes, oval tubes and all kinds profiles with different shapes;







5. Suitable for clamping part of a workpiece inserted into the through hole, checking the seating, or modifying spindle coolant specifications;



6. Low noise, large stroke.







Model Claw stroke Maximum clamping force Allowable pressure Limit speed Clamping range Central height Rotational inertia Rotating part weight Whole unit weight
G63TJ 4.6 5.4 0.4-0.9 500 Φ50-Φ63 130 0.12 23 33.8
G100TJ 4.6 10 0.4-0.9 500 Φ80-Φ100 200 0.9 72 95
G125TJ 5.7 15 0.4-0.9 500 Φ100-Φ125 230 2.42 133 175



SIMILIAR PRODUCT:

Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine 0Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine 1Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine 2Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine 3





WORK SHOP:

Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine 4Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine 5







FAQ:

Q:What's the OEM serivce of OREE LASER?

A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.

Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.

Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.

Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001



WHY CHOOSE LINGMAN:

A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.



B:Good material and Quality:



Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine



C.Technicial support:



We can revise size as your request to meet your machine.



D.Best services:

We do best effort we can to our customers.
