PRODOCUT OVERWIEW:

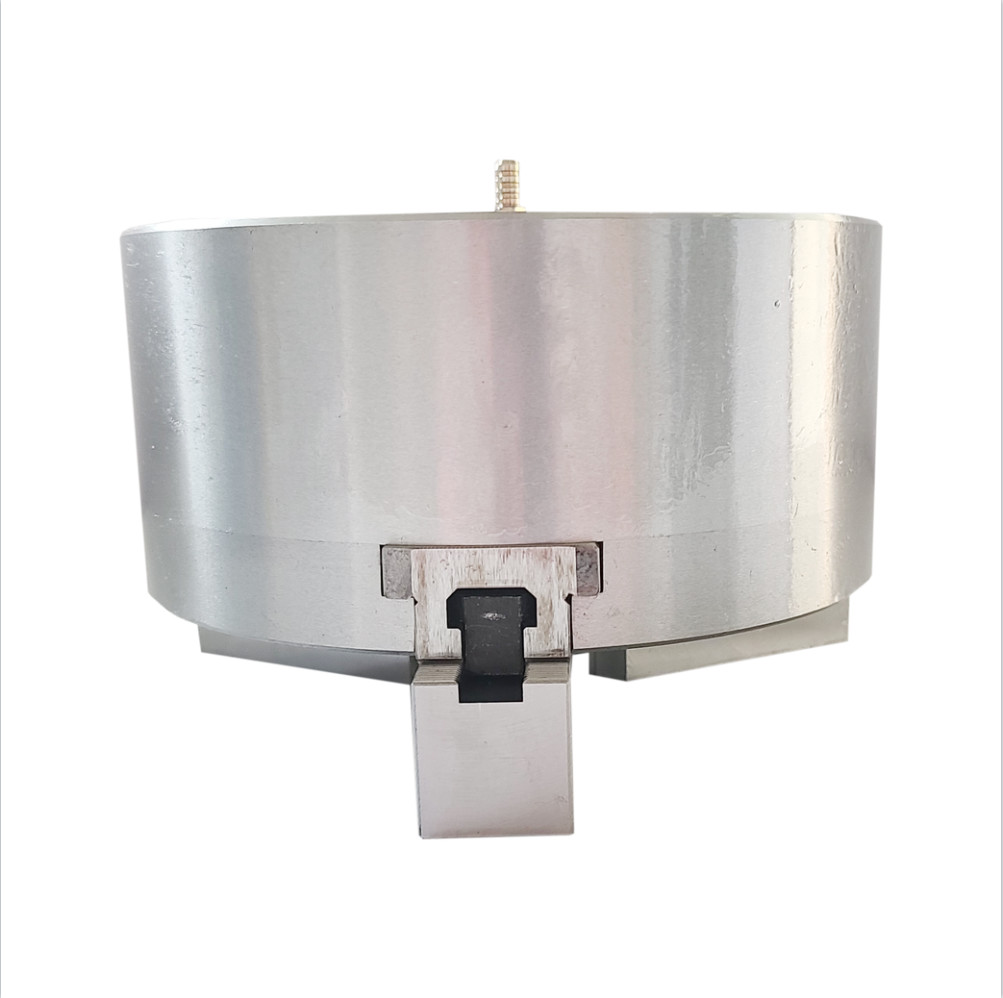

CK320S-3 Stainless steel Double-action Pnuematic chuck for CNC lathe machine
3-Jaw through hole lathe machine CNC Power Chuck
1. It’s a WEDGE-HOOK type 3-jaw with the large through-hole.
2. Matching surfaces of all parts hardened, ground the lubricated directly.
3. Construction of high rigidity and high clamping accuracy.
4. J value is the hole diameter of blank jaw nut,K is the maximum thread specification,and it could be customized.
5. Subject the different products spec and craft, and different exchange rate,The price here is just for your reference,please get the right price from our sales when you order.
| Spec | Jaw stroke(mm) | Maximum Static Clamping force(KN) | Maximum Holding force(KN) | Permissible Pressure(Mpa) | Clamping range(mm) | Holding range(mm) | Weight(KG) |
| CK130S-3 | 3.6 | 25 | 16 | 0.4-0.8 | 3-140 | 15-140 | 8.8 |
| CK160S-3 | 4.2 | 42.3 | 23.5 | 0.4-0.8 | 2-170 | 20-180 | 15.7 |
| CK200S-3 | 5 | 62.5 | 35.6 | 0.4-0.8 | 5-210 | 20-240 | 24.9 |
| CK250S-3 | 5.7 | 75 | 39.5 | 0.4-0.8 | 10-260 | 30-280 | 36.7 |
| CK320S-3 | 8.5 | 128 | 73 | 0.4-0.8 | 10-350 | 40-360 | 68 |
| CK400S-3 | 12 | 175 | 98 | 0.4-0.8 | 15-420 | 50-430 | 140 |
SIMILIAR PRODUCT:
WORK SHOP:
FAQ:
Q:What's the OEM serivce of OREE LASER?
WHY CHOOSE LINGMAN:
A: Professional Factory:
We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.
B:Good material and Quality:
Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine
C.Technicial support:
We can revise size as your request to meet your machine.
D.Best services:
We do best effort we can to our customers.
|
|
