| MOQ: | 1 set |
| Price: | USD 6600-7200 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 100 sets per month |
1. Description

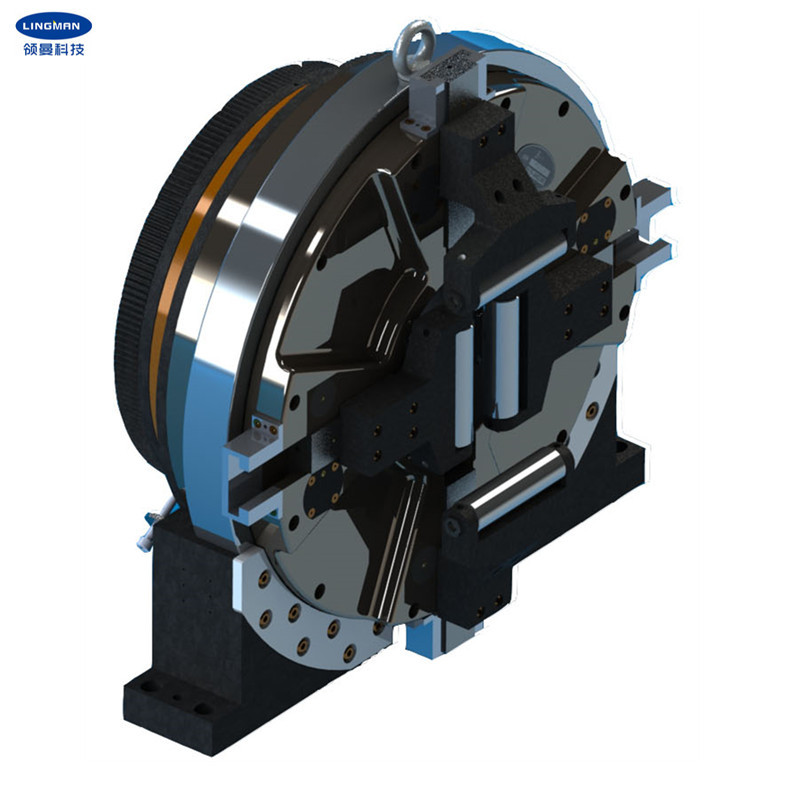

This product is specially designed for laser cutting units, the product itself can be used as an independent rotating spindle, with a chuck in the middle that can clamp a work-piece tightly and rotate at the same time.
The chuck works along the full stroke, there is no need to adjust the four-jaw position, a full range of applicable pipe parts can be clamped, and the production efficiency is improved.
The chuck adopts fully enclosed structure, the stability and the wear resistance are better, the service life is longer, the clamping precision is higher than a traditional laser chuck, the clamping force is bigger than the similar products in the market, and the aerodynamic pressure is lower, smaller clamping force can be obtained, so that thin-walled pipe parts can be processed.
2. Performance Parameters
|
Model number |
G400C-170 |
| Claw stroke | 165mm |
| Maximum clamping force | 1.36-2.45KN |
| Alloable pressure | 0.1-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 0-170mm |
| Central height | 315mm |
| Rotational inertia | 3.95kg.㎡ |
| Rotating part weight | 128.5kg |
| Whole unit weight | 210kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G400C-170 | 600 | 280 | 590 | 602 | 100 | 60 | 570 | 273 | 170 | 235 | 250 | 400 | 10 | 8-M8 | 18X21 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
Video
Video
Video
|
|
| MOQ: | 1 set |
| Price: | USD 6600-7200 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 100 sets per month |
1. Description
This product is specially designed for laser cutting units, the product itself can be used as an independent rotating spindle, with a chuck in the middle that can clamp a work-piece tightly and rotate at the same time.
The chuck works along the full stroke, there is no need to adjust the four-jaw position, a full range of applicable pipe parts can be clamped, and the production efficiency is improved.
The chuck adopts fully enclosed structure, the stability and the wear resistance are better, the service life is longer, the clamping precision is higher than a traditional laser chuck, the clamping force is bigger than the similar products in the market, and the aerodynamic pressure is lower, smaller clamping force can be obtained, so that thin-walled pipe parts can be processed.
2. Performance Parameters
|
Model number |
G400C-170 |
| Claw stroke | 165mm |
| Maximum clamping force | 1.36-2.45KN |
| Alloable pressure | 0.1-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 0-170mm |
| Central height | 315mm |
| Rotational inertia | 3.95kg.㎡ |
| Rotating part weight | 128.5kg |
| Whole unit weight | 210kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G400C-170 | 600 | 280 | 590 | 602 | 100 | 60 | 570 | 273 | 170 | 235 | 250 | 400 | 10 | 8-M8 | 18X21 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
