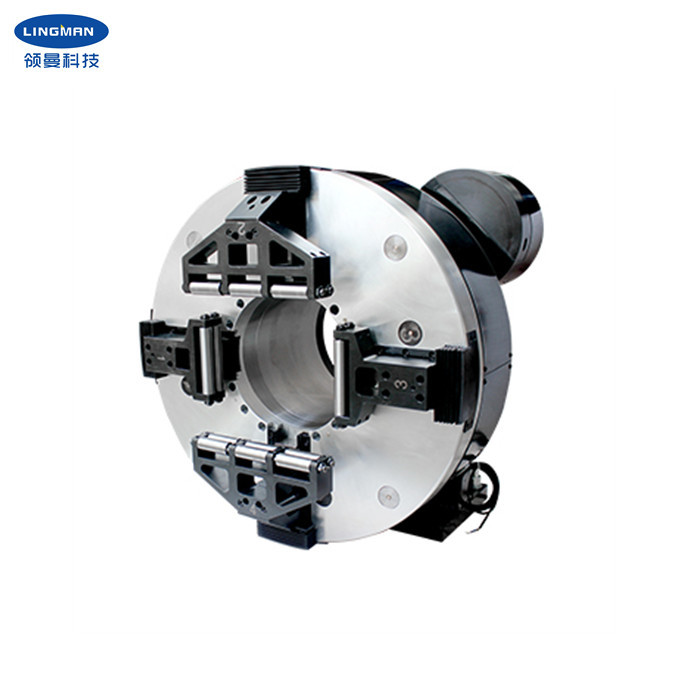

Single Bearing Full Stroke Pneumatic Rotary Chuck For Laser Pipe Cutting

MOQ:	1 set
Price:	USD 4200-4900/set
Standard Packaging:	Wood carton
Delivery Period:	15-20 work days
Payment Method:	T/T, L/C
Supply Capacity:	500 sets per month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, Jiangsu, China

Brand Name

Lingman

Model Number

G400DC-175

Product Name:

Pneumatic Chuck

Jaw Stroke:

165mm

Maximum Clamping Force:

0.87KN

Allowable Pressure:

0.3-0.9MPa

Limit Speed:

150r/min

Clamping Range:

8-173mm

Rotational Inertia:

3.35kg.㎡

Rotating Part Weight:

116kg

Whole Unit Weight:

193kg

Highlight:

Full Stroke Pneumatic Rotary Chuck

Cylinders Control Pneumatic Rotary Chuck

Pneumatic Rotary Laser Chuck

Product Description

Single Bearing Full Stroke Pneumatic Rotary Chuck For Laser Pipe Cutting

1. Descripition

Our laser chuck is mainly designed for laser tube cutting machine. Laser chuck is used for clamping and feeding tubes when cutting tube. It can clamp not only round tubes, but also rectangular tube, L-shap tube, H-shape tube and so on.
It is used base point positioning and it is convenient for the adjustment of the main quipment and greatly shortens the debugging time of the main equipment. And our design is full stroke design. There's no need to adjust the jaw, it is easy to clamp and centering, to achieve switching different pipe diameters, which greatly saving clamping time.

It can realize quick clamping and loosening by rotating air intake from the side, disconnet the air source before working. It is controlled by switching single and double cylinders, which produces differentc clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes. Becaus of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.This penumatic chuck is widely used in special laser pipe cutters and other pipe processing machine system.

2. Performance Parameters

Model number	G400DC-175
Claw stroke	165mm
Maximunm clamping force	0.87KN
Allowable pressure	0.3-0.9MPa
Limit speed	150r/min
Clamping range	8-173mm
Central height	260mm
Rotational inertia	3.35Kg.m2
Rotating part weight	116kg
Whole unit weight	193kg

3. Dimensions

Specifications

G400DC-175

500

260

500

510

160

100

440

333

175

220

12-M8

14X24

4. Advantages

a. Full stroke design

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws

5. Production Line

6. Our Service

a. We are the direct factory with good price and fast lead time.

b. Professional design team work with you.

c. Professional QC team to guarantee the high quality.

d. Providing OEM & ODM service.
