| MOQ: | 1 set |
| Price: | USD 8800-9000 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50 sets per month |
1. Description

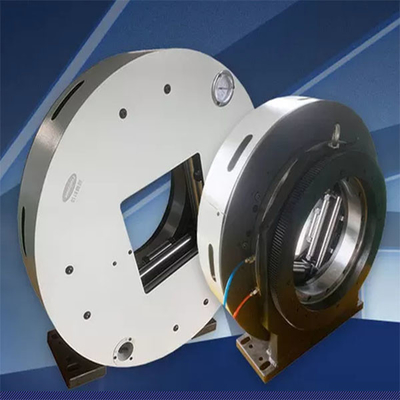

Our chuck is specially designed for laser tube cutting equipment. The product it self can be used as an independent rotating spindle, and it can firmly clamp work-piece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. Disconnect the air source before operation.
2. Performance Parameters
|
Model number |
G800D-360 |
| Claw stroke | 260mm |
| Maximum clamping force | 4.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 15-360mm |
| Central height | 425mm |
| Rotational inertia | 17.69kg.m2 |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G800D-360 | 652 | 425 | 800 | 825 | 280 | / | 587 | 405.5 | 360 | 390 | 430 | 650 | 8 | 12-M12 | 18X20 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e.Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
7. FAQ
Q: What parameters should we offer us for proper quotation?
A: Application, dimension, quantity, packing requirements.
Q:What's your advantages?
A:Honest business with competitive price and professional service on export process.
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our products.
Q:What's your lead time?
A: Within 15-35 days after confirming the order.
Q: What are your payment terms?
A: T/T, L/C, West Union, Paypal, etc.
|
|
