Laser Rotary Air Chuck Full Stroke For Laser Pipe Cutter

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: G360J-110

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 2800-3400/set

Packaging Details: Wood carton

Delivery Time: 15-20 work days

Payment Terms: T/T, L/C

Supply Ability: 500 sets per month

Get Best Price
Highlight:

Laser Rotary Air Chuck

,

Full Stroke Laser Rotary Air Chuck

,

Laser Pipe Cutter Air Operated Chuck

Product Name:
Laser Chuck
Jaw Stroke:
110mm
Clamping Range:
3-110mm
Central Height:
230mm
Maximum Clamping Force:
0.8KN
Allowable Pressure:
0.25-0.9MPa
Limit Speed:
200r/min
Rotational Inertia:
1.44kg.㎡
Rotating Part Weight:
66kg
Whole Weight:
116
Product Name:
Laser Chuck
Jaw Stroke:
110mm
Clamping Range:
3-110mm
Central Height:
230mm
Maximum Clamping Force:
0.8KN
Allowable Pressure:
0.25-0.9MPa
Limit Speed:
200r/min
Rotational Inertia:
1.44kg.㎡
Rotating Part Weight:
66kg
Whole Weight:
116

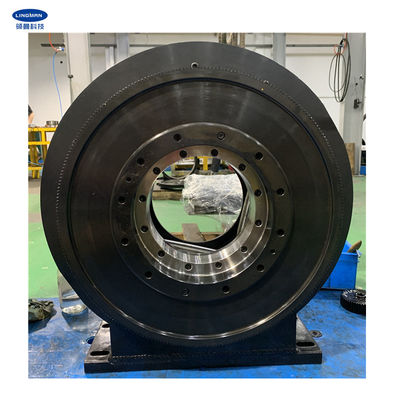

Laser Rotary Air Chuck Full Stroke For Laser Pipe Cutter
Laser Rotary Air Chuck Full Stroke For Laser Pipe Cutter

 1. Descripition

Our laser chuck is pneumatic type and is mainly used in laser pipe cutting machine, plasma cutting machine and welding machine. It can support different shapes of pipes, such as round pipe, square pipe, rectangular pipe, L-shape pipe and H-shape pipe. It improves the cutting accuracy, rotation accuracy and repeated positioning accuracy, compared with traditional chuck. The application of laser chuck makes laser cutting more efficient and quickly.

It can realize quick clamping and loosening by rotating air intake from the side, disconnet the air source before working. It is controlled by switching single and double cylinders, which produces differentc clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes. Becaus of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.This penumatic chuck is widely used in special laser pipe cutters and other pipe processing machine system.

 2. Performance Parameters


  • Model number
G360J-110
  • Jaw stroke
110mm
  • Maximunm clamping force
0.8KN
  • Allowable pressure
0.25-0.9MPa
  • Limit speed
200r/min
  • Clamping range
3-110mm
  • Central height
230mm
  • Rotational inertia
1.44Kg.m2
  • Rotating part weight
66kg
  • Whole unit weight
116kg


3. Dimensions


Laser Rotary Air Chuck Full Stroke For Laser Pipe Cutter 0

Specifications A B B1 C D E F G H I R S
G360J-110 320 230 435 447.5 220 196 270 197.5 110 122 12-M8 14


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws




5. Our Service

1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.

3.Professional QC team to guarantee the high quality.

4.Providing OEM & ODM service.

6. FAQ

Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.


Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.



Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.



Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.

Explore International Market, Win- Win Cooperations!
