Product Details
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G360B-110
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 3400-3800/set
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Claw Stroke: |
50mm |
Maximum Clamping Force: |
0.8KN |
Allowable Pressure: |
0.4-0.9MPa |
Limit Speed: |
400r/min |
Clamping Range: |
5-110mm |
Central Height: |
225mm |
Rotational Inertia: |
2.19kg.㎡ |
Rotating Part Weight: |
107kg |
Whole Unit Weight: |
149kg |
Claw Stroke: |
50mm |
Maximum Clamping Force: |
0.8KN |
Allowable Pressure: |
0.4-0.9MPa |
Limit Speed: |
400r/min |
Clamping Range: |
5-110mm |
Central Height: |
225mm |
Rotational Inertia: |
2.19kg.㎡ |
Rotating Part Weight: |
107kg |
Whole Unit Weight: |
149kg |

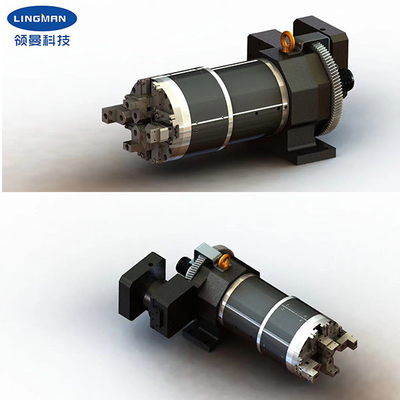

Our chuck is specially designed for laser pipe cutting machine. The product itself can be used as an independent spindle with a chuck in the middle which can firmly clamp the work-piece and rotate at the same time.
There’s two independent cylinders, one-way valve and check valve and it also has long-term pressure holding function( over 8 hours) inside. The quick clamping and loosening actions can be achieved through the side rotation of air inlet, and disconnect the air source to start the work. After fixing the base, connecting motor with gear and compressed air source can realize clamping and driving the work-piece to rotate. It is mainly used for work-piece clamping and rotating.
The structure of the chuck is stable and it can bear large radial force, axial force and overturning force. It has smooth rotation, high accuracy and low noise. Moreover,it has light weight and small rotational inertia, the cutting efficiency can be greatly improved and it also saves energy.
2. Performance Parameters
|
G360B-110 |
|
50mm |
|
0.8KN |
|
0.4-0.9MPa |
|
400r/min |
|
5-110mm |
|
225mm |
|
2.19Kg.m2 |
|
107kg |
|
149kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S |
| G360B-110 | 420 | 225 | 405 | 427 | 230 | 186 | 365 | 211 | 110 | 122 | 140 | 360 | 30 | 60 | 8 | 6 | 22 | M12 | 12-M8 | 18 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
7. FAQ
Q: What parameters should we offer us for proper quotation?
A: Application, dimension, quantity, packing requirements.
Q:What's your advantages?
A:Honest business with competitive price and professional service on export process.
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our products.
Q:What's your lead time?
A: Within 15-35 days after confirming the order.
Q: What are your payment terms?
A: T/T, L/C, West Union, Paypal, etc.
Explore International Market, Win- Win Cooperations!
