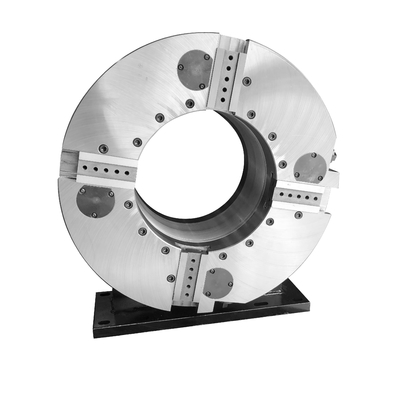

G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment

Product Details

Place of Origin: CHINA-CHANGZHOU

Brand Name: LINGMAN

Model Number: G400S-165

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $2700-4500

Packaging Details: wooden box,packing measurements depend on products.

Delivery Time: 3-10 work days

Payment Terms: T/T

Get Best Price
Highlight:

Laser Equipment Chuck Collet Holder

,

Manual Rotary Chuck Collet Holder

,

Pneumatic Tube Chuck

Claw Stroke:
140mm
Limit Speed:
500r/min
Clamping Range:
Φ0-Φ160mm
Central Height:
260mm
Rotational Inertia:
1.85Kg.㎡
Rotational Part Weight:
82Kg
Whole Unit Weight:
95Kg
Claw Stroke:
140mm
Limit Speed:
500r/min
Clamping Range:
Φ0-Φ160mm
Central Height:
260mm
Rotational Inertia:
1.85Kg.㎡
Rotational Part Weight:
82Kg
Whole Unit Weight:
95Kg
G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment

PRODOCUT OVERWIEW:

G400S-165 Manual Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine

Application:



Laser special tube cutting machine full stroke main chuck is suitable for laser tube cutting equipment, rotary cutting round tube, square tube, oval tube, etc.



Manual control of two groups of claws can clamp the workpiece tightly and drive the workpiece to rotate.

The product is a four-jaw dual power manual two-two-center structure, Which can clamp the circular, square, rectangular,elliptical and other centrally axisymmentric parts.



The four-jaw guide uses a guide rail mechanism to drive, which makes the four-jaw linearity and stability higher, and achieves self-centering. There is no need to adjust the position of the four-jaw, which greatly reduces the labor cost of the machine and improves the production efficiency.





Model Claw Stroke Limit Speed Clamping range Central height Rotational inertia Rotating part weight Whole unit weight
G400S-165 140mm 500 0-160 260 1.85 82 95
G500S-220 160 500 20-215 310 3.74 108 158



SIMILIAR PRODUCT:

G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment 0G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment 1G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment 2G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment 3





WORK SHOP:

G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment 4G400S-165 Manual Rotary Pneumatic Chuck Collet Holder For Laser Equipment 5







FAQ:

Q: What's the OEM serivce of OREE LASER?

A1: 1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.

Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.

Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.

Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001



WHY CHOOSE LINGMAN:

A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.



B: Good material and Quality:



Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine



C. Technicial support:



We can revise size as your request to meet your machine.



D. Best services:

We do best effort we can to our customers.
