Place of Origin: | Changzhou, Jiangsu, China |
---|---|
Brand Name: | Lingman |
Model Number: | G500DC-230 |
Minimum Order Quantity: | 1 set |
Price: | USD 4200-4900/set |
Packaging Details: | Wood carton |
Delivery Time: | 15-20 work days |
Payment Terms: | T/T, L/C |
Supply Ability: | 500 sets per month |
Product Name: | Pneumatic Chuck | Claw Stroke: | 200mm |
---|---|---|---|
Maximum Clamping Force: | 2.77KN | Allowable Pressure: | 0.1-0.9MPa |
Limit Speed: | 130r/min | Clamping Range: | 8-228mm |
Central Height: | 315mm | Rotational Inertia: | 4.6kg.㎡ |
Application: | Laser Tube Cutting Machine | ||
High Light: | Full Stroke Rotary Pneumatic Chuck,200mm Claw Stroke Rotary Pneumatic Chuck,Tube Cutting Machine Pneumatic Rotary Chuck |
1. Descripition

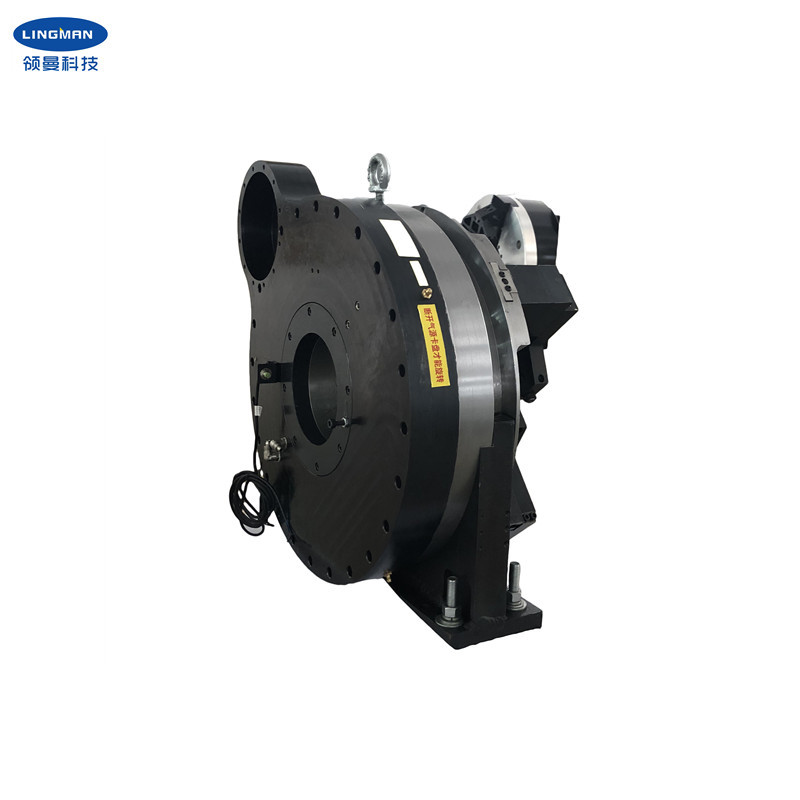

Our pneumatic chuck is mainly designed for laser tube cutting machine. Pneumatic chuck is applied to clamp and loosen tubes and feed tubes when cutting tube. Except round tubes, our pneumatic chuck can also clamp rectanbular, square, H-shape and L-shape tubes.
It is used base point positioning and it is convenient for the adjustment of the main quipment and greatly shortens the debugging time of the main equipment. And our design is full stroke design. There's no need to adjust the jaw, it is easy to clamp and centering, to achieve switching different pipe diameters, which greatly saving clamping time.
The pneuamtic chuck can work in full stroke without additional adjustment of four jaws.Adopting a fully closed structure, the chuck has better stability and wear resistance.It has longer service life, higher rotary accuracy and repeated positioning accuracy becaused of the inner cross roller bearing. This pneumatic chuck is widely applied to professional pipe cutting machine and other pipe processing machine system.
2. Performance Parameters
|
G500DC-230 |
|
220mm |
|
1.5KN |
|
0.3-0.9MPa |
|
150r/min |
|
8-228mm |
|
315mm |
|
4.18Kg.m2 |
|
124kg |
|
245kg |
3. Dimensions
Specifications | A | B | B1 | C | D | E | F | G | H | I | R | S |
G500DC-230 | 420 | 315 | 600 | 615 | 220 | 60 | 380 | 368 | 230 | 265 | 12-M8 | 18X22 |
4. Advantages
a. Full stroke design |
b. Wide range of applications, diversification of processing profiles |
c. High repetitive positioning accuracy |
d. Low maintenance cost, long service life |
e. Multiple configurations are available |
5. Production Line
6. Our Service
a. We are the direct factory with good price and fast lead time. |
b. Professional design team work with you. |
c. Professional QC team to guarantee the high quality. |
d. Providing OEM & ODM service. |
