1. Description

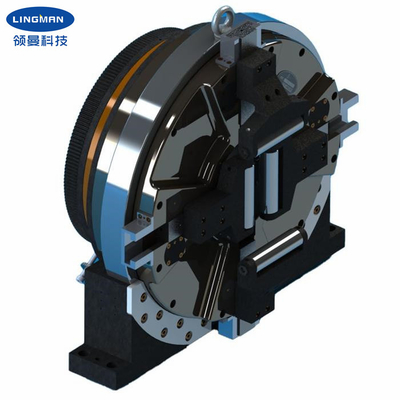

Our laser chuck is mainly designed for laser tube cutting machine. Laser pneumatic rotary chuck is used for clamping and feeding tubes when cutting tube. It can clamp not only round tubes, but also rectangular tube, L-shap tube, H-shape tube and so on. The chuck works along the full stroke, there is no need to adjust the four-jaw position, so the production efficiency can be greatly improved. This one has a chuck in the middle that can hold the workpiece firmly and rotate at the same time. After the product base is fixed, only the matching motor is added and connected with the gear, and then the compressed air source(0.1-0.9Mpa) is connected to achieve clamping work-piece and driving the work-piece to rotate.
This pneumatic rotary chuck can be widely used in special-purpose laser pipe cutting machine and other pipe processing machine tool systems.
2. Performance Parameters
| Product name | Pneumatic rotary chuck |
|
Model number |
G450C-225 |
| Claw stroke | 200mm |
| Maximum clamping force | 2.77KN |
| Alloable pressure | 0.1-0.9MPa |
| Limit speed | 130r/min |
| Clamping range | 0-225mm |
| Central height | 315mm |
| Rotational inertia | 6.1kg.㎡ |
| Rotating part weight | 140kg |
| Whole unit weight | 240kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G500C-225 | 670 | 315 | 694 | 672 | 100 | 60 | 640 | 273 | 225 | 235 | 250 | 400 | 10 | 8-M8 | 18X21 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
6. Production Line
