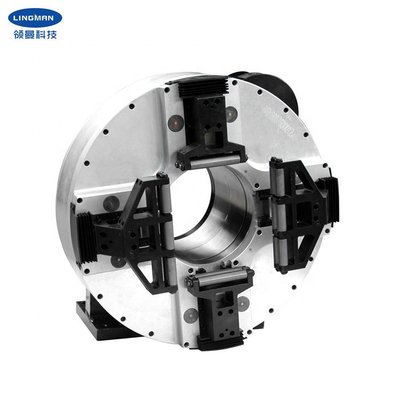

Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment

Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment
Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: Pneumatic rotary chuck G500DC-230
Minimum Order Quantity: 1 set
Price: USD 4200-4900/set
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: Laser Pneumatic Rotary Chuck Claw Stroke: 220mm
Maximum Clamping Force: 1.5KN Allowable Pressure: 0.3-0.9MPa
Limit Speed: 150r/min Clamping Range: 8-173mm
Central Height: 260mm Rotational Inertia: 3.kg.㎡
Feature: Better Wear Resistance
High Light:

Pneumatic Rotary 4 Jaw Chuck

,

Laser Tube Cutter 4 Jaw Chuck

,

150r/min Pneumatic Rotary Chuck

Highly Competitive 4 Jaw Pneumatic Rotary Chuck for Laser Tube Cutting Equipment

 1. Descripition

Our pneumatic rotary chuck is mainly designed for laser tube cutting machine.This pneumatic chuck can also clamp round,rectanbular, square, H-shape and L-shape tubes,which can meet your different requirments.



This chuck is the latest design. The pneumatic rotary chuck is a full stroke design, so there is no need to adjust the position of the four jaws. This kind pneumatic rotary chuck's claw stroke/diameter is 220mm, the maximum clamping force is 1.5KN and the central height is 315mm. In the case of low air pressure, a smaller clamping force can be obtained.

The pneuamtic chuck can work in full stroke without additional adjustment of four jaws.Adopting a fully closed structure, the chuck has better stability and wear resistance.It has longer service life, higher rotary accuracy and repeated positioning accuracy becaused of the inner cross roller bearing.


 2. Performance Parameters

  • Product name
Pneumatic rotary chuck
  • Model number
G500DC-230
  • Claw stroke
220mm
  • Maximunm clamping force
1.5KN
  • Allowable pressure
0.3-0.9MPa
  • Limit speed
150r/min
  • Clamping range
8-228mm
  • Central height
315mm
  • Rotational inertia
4.18Kg.m²
  • Rotating part weight
124kg
  • Whole unit weight
245kg


​ 3. Dimensions
Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 0


Specifications A B B1 C D E F G H I R S
G500DC-230 420 315 600 615 220 60 380 368 230 265 12-M8 18X22


 4. Advantages

 a. Full stroke designed pneumatic rotary chuck
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws




5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.




 6. Production Line
Automatic Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 1
