1. Description

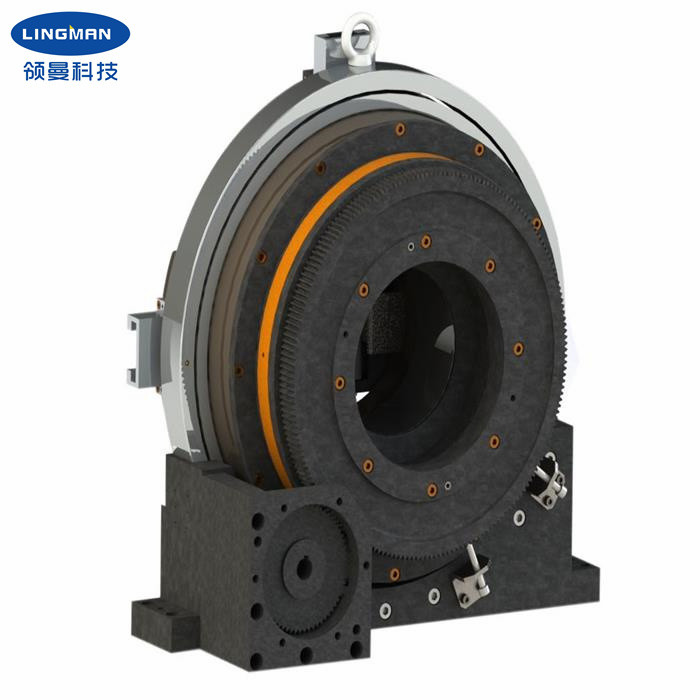

This chuck is a four-jaw full-stroke main chuck specially designed for laser pipe cutting equipment. This one has a rotating independent spindle in the middle that holds the workpiece securely and rotates at the same time. After the product base is fixed, it is only necessary to add a matching motor and connect it with the gear, and then connect the compressed air source (0.1-0.9Mpa) to clamp the workpiece and drive the workpiece to rotate. Quick clamping and releasing action is achieved by sideways rotating air inlets. A full range of applicable pipe fittings can be clamped, which can improve production efficiency. Compared with similar products on the market, the chuck has higher rotational accuracy and repeatability, as well as higher clamping force.
Products can be widely used in special laser pipe cutting machine and other pipe processing machine tool systems.
2. Performance Parameters
|
Model number |
G400C-170 |
| Claw stroke | 165mm |
| Maximum clamping force | 1.36-2.45KN |
| Alloable pressure | 0.1-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 0-170mm |
| Central height | 280mm |
| Rotational inertia | 3.95kg.㎡ |
| Rotating part weight | 128.5kg |
| Whole unit weight | 210kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G400C-170 | 600 | 280 | 590 | 602 | 100 | 60 | 570 | 273 | 170 | 235 | 250 | 400 | 10 | 8-M8 | 18X21 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
