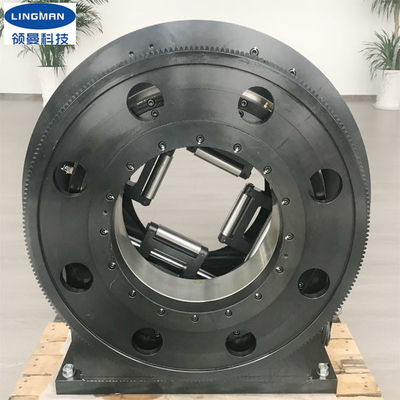

4 Jaw Automatic Power Pneumatic Chuck For Laser Tube Cutting

1 set
USD 3000-4000/set
4 Jaw Automatic Power Pneumatic Chuck For Laser Tube Cutting
Features Gallery Product Description Request A Quote
Product Name: Rotary Chuck
Jaw Stroke: 220mm
Clamping Range: 0-220mm
Central Height: 350mm
Maximum Clamping Force: 1.7KN
Allowable Pressure: 0.25-0.9MPa
Limit Speed: 200r/min
Rotational Inertia: 6.5kg.㎡
Rotating Part Weight: 129kg
Whole Weight: 177
High Light:

4 Jaw Automatic Power Pneumatic Chuck


Laser Tube Cutting Pneumatic Chuck


220mm Jaw Laser Rotary Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G600J-225
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Product Description
4 Jaw Automatic Power Pneumatic Chuck For Laser Tube Cutting

 1. Descripition
Our laser chuck is specially designed for laser pipe cutting machine. This chuck is mainly used to clamp round tubes with different sizes. Its clamping range is Φ0-220mm and central height is 350mm. It can meet can meet normal pipe cutting needs.

The chuck outputs by using a cylinder directly, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Because the cylinder is used to clamp the work-piece directly, the working range is wide. The cylinder is used for outputting directly, the output force and the air pressure are in linear proportion, which makes it easy to achieve software control.

 2. Performance Parameters

  • Model number
  • Jaw stroke
  • Maximunm clamping force
  • Allowable pressure
  • Limit speed
  • Clamping range
  • Central height
  • Rotational inertia
  • Rotating part weight
  • Whole unit weight

3. Dimensions

4 Jaw Automatic Power Pneumatic Chuck For Laser Tube Cutting 0

Specifications A B B1 C D E F G H I R S
G360J-110 320 230 435 447.5 220 196 270 197.5 110 122 12-M8 14

 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws

 5. Production Line
4 Jaw Automatic Power Pneumatic Chuck For Laser Tube Cutting 1


6. Our Service

1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.

3.Professional QC team to guarantee the high quality.

4.Providing OEM & ODM service.

7. FAQ

Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.

Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.


Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.


Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.
