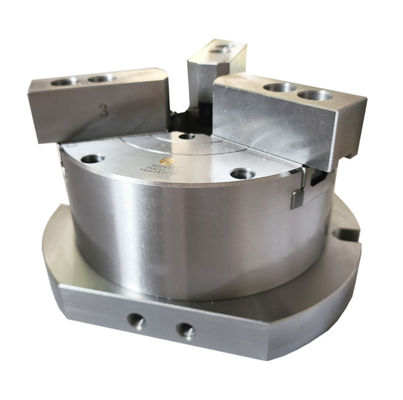

3 Jaw Steel Pneumatic Chuck For Pipe Thread Machine Tool

Category:
Lathe Machine Chuck
Price:
USD 550-1650 set
Payment Method:
T/T, L/C
Specifications
Product Name:
Front Mounted Pneumatic Chuck
Material:
Steel
Claw Stroke/diameter:
4.7mm
Max. Clamping Force:
41.7KN
Max. Numbers Of Revolutions:
2100 R/m
Clamping Range:
5-210mm
Net Weight:
25.5KG
Application:
Welding Equipment
Feature:
Big Stroke
Function:
Clamping Work-piece
Highlight:

3 Jaw Steel Pneumatic Chuck

,

Pipe Thread Machine Steel Pneumatic Chuck

Introduction
3 Jaw Steel Pneumatic Chuck for Pipe Thread Machine Tool

 1. Description


Our company is a professional manufacture of producing chucks for lathe, CNC lathe and laser cutting machine. Pneumatic chucks and power chucks are our leading products. Here lists the featured of pneumatic chucks.


The obvious characteristics of this chuck are light weight, big hole diameter, high stroke and high speed when rotating. Because the connecting between the chuck and main shaft complies with the national standard(short cylinder connecting mode), there’s no need to change the structure of the lathe and just only prepare the matching flange which can connect to the chuck and machine tool when installing.This kind of chuck is front mounted pneumatic chuck and is widely used in lathe, pipe thread machine tool and welding equipment.



It is easy to install the chuck.The chuck body is the cylinder, with piston and inverted valve inside to achieve super-long time pressure-keeping function (more than 24 hours). The clamping and loosing movement is achieved by rotary air inlet at the side. The machine will not work before cutting off the gas supply.



 2. Performance Parameters

Model number

BK200TQ

Claw stroke/diameter

4.7mm

Max. clamping force

41.7KN

Allowable pressure

0.4-0.9Mpa

Limit speed

2100r/m

Clamping range

5-210mm

Net weight

25.5KG


​ 3. Dimensions


3 Jaw Steel Pneumatic Chuck For Pipe Thread Machine Tool

Specifications D D1 D2 D3 d H H1 H2 z-d
BK200TQ 214 258 180 165 52 145 105 72 3-M10


 4. Advantages


 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws


 5. Production Line
3 Jaw Steel Pneumatic Chuck For Pipe Thread Machine Tool

 6. Our Service


 a. We are the direct factory with good price and fast lead time.
 b. Professional design team work with you.
 s. Professional QC team to guarantee the high quality.
 d. Providing OEM & ODM service.





FAQ

Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.


Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.



Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.



Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.
