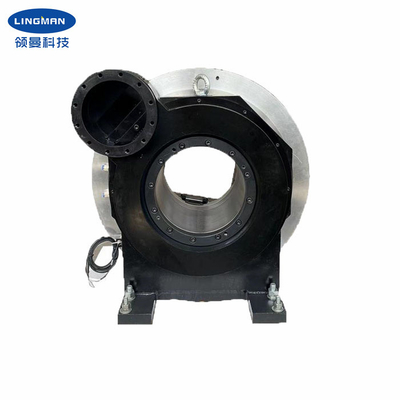

Higher Accuracy Rotary Pneumatic 4 Jaw Laser Chuck For Fiber Laser Cutting
  • name
  • name
  • name

Higher Accuracy Rotary Pneumatic 4 Jaw Laser Chuck For Fiber Laser Cutting

MOQ: 1 set
Price: USD 4800-5200 set
Standard Packaging: Wood carton
Delivery Period: 10-15 work days
Payment Method: T/T, L/C
Supply Capacity: 100 sets per month
Details Information
Product Description
Detail Information
Place of Origin
Changzhou, Jiangsu, China
Brand Name
Lingman
Model Number
G500D-230
Product Name:
Pneumatic Chuck
Claw Stroke:
225mm
Maximum Clamping Force:
1.6KN
Allowable Pressure:
0.3-0.92MPa
Limit Speed:
140r/min
Clamping Range:
8-225mm
Central Height:
316mm
Rotational Inertia:
4.19kg.㎡
Highlight:

Rotary Pneumatic 4 Jaw Laser Chuck

,

Higher Accuracy 4 Jaw Laser Chuck

Product Description
Higher Accuracy Rotary Pneumatic 4-Jaw Laser Chuck For Fiber Laser Cutting

1. Description



The chuck is a four-jaw full stroke main chuck specially designed for laser pipe cutting equipment. This has a rotating independent spindle in the middle, which can firmly hold the workpiece and rotate simultaneously. After the base of the product is fixed, it only needs to add the supporting motor and connect with the gear, and then connect the compressed air source (0.3-0.9mpa) to clamp the workpiece and drive the workpiece to rotate. Chuck for full stroke operation, no need to adjust the position of the four claws. Can clip round tube, square tube, rectangular tube, improve production efficiency. Compared with similar products on the market, the chuck has higher rotation accuracy and repetition accuracy, as well as higher clamping force, its center height of 315mm, clamping range of 8-228mm.
The products can be widely used in special laser pipe cutting machine and other pipe processing machine system.



2. Performance Parameters



Model number

 G500D-230
Claw stroke 220mm
Maximum clamping force 1.5KN
Alloable pressure 0.3-0.9MPa
Limit speed 150r/min
Clamping range 8-228mm
Central height 315mm
Rotational  inertia

4.18kg.㎡
Rotating part weight 124kg
Whole unit weight 245kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.



​3. Dimensions


Higher Accuracy Rotary Pneumatic 4 Jaw Laser Chuck For Fiber Laser Cutting 0


Specifications A B B1 C D E F G H I J K O R S
G500D-230 420 315 600 615 220 60 380 368 230 265 250 490 6 12-M8 18X22


4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



6. Production Line

Higher Accuracy Rotary Pneumatic 4 Jaw Laser Chuck For Fiber Laser Cutting 1

Tags:

150rpm four jaw independent chuck,

315mm Pneumatic Rotary Chuck,

OEM Pneumatic Rotary Chuck

Recommended Products
Precision Pneumatic Rotary Chuck , 4 Jaw Through Hole Chuck

Precision Pneumatic Rotary Chuck , 4 Jaw Through Hole Chuck

Contact Now
130rpm Pneumatic Stainless Steel Chuck CNC Router Rotary Axis

130rpm Pneumatic Stainless Steel Chuck CNC Router Rotary Axis

Contact Now
Single Bearing Pneumatic Rotary Chuck Professional Laser Chuck For Pipe Cutting

Single Bearing Pneumatic Rotary Chuck Professional Laser Chuck For Pipe Cutting

Contact Now
Pneumatic CNC Lathe Chuck Four Jaw For Laser Pipe Cutting Machine

Pneumatic CNC Lathe Chuck Four Jaw For Laser Pipe Cutting Machine

Contact Now
Full Stroke Pneumatic Rotary Chuck , Four Jaw CNC Machine Chuck

Full Stroke Pneumatic Rotary Chuck , Four Jaw CNC Machine Chuck

Contact Now
Central Solid Air Operated Chuck Four Claw Feeding Chuck

Central Solid Air Operated Chuck Four Claw Feeding Chuck

Contact Now
4 Jaw Pneumatic Rotary Chuck High Production Efficiency

4 Jaw Pneumatic Rotary Chuck High Production Efficiency

Contact Now
Laser Pipe Cutting Chuck Pneumatic Power Chuck For CNC Drilling Machine

Laser Pipe Cutting Chuck Pneumatic Power Chuck For CNC Drilling Machine

Contact Now
