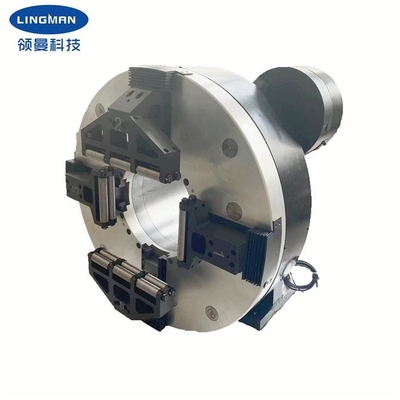

Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine

Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine
Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G500D-230
Minimum Order Quantity: 1 set
Price: USD 4800-5200 set
Packaging Details: Wood carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: Full Stroke Chuck Claw Stroke: 230mm
Maximum Clamping Force: 1.7KN Allowable Pressure: 0.3-0.95MPa
Limit Speed: 142r/min Clamping Range: 8-227mm
Central Height: 313mm Rotational Inertia: 4.20kg.㎡
High Light:

Full Stroke Pneumatic Rotary Laser Chuck

,

Pneumatic Full Stroke Chuck

Factory Direct Chuck 4-Jaw Pneumatic Rotary Laser Chuck for Pipe Cutting Machine

1. Description



The chuck is a four-jaw full-stroke main chuck specially designed for laser pipe cutting equipment. After the product base is fixed, it is only necessary to add a matching motor to connect with the gear, and then connect the compressed air source (0.3-0.9mpa) to clamp the workpiece and drive the workpiece to rotate. The chuck is operated with full stroke, there is no need to adjust the position of the four jaws. Can clamp round tube, square tube and rectangular tube to improve production efficiency. Compared with similar products on the market, the chuck has higher rotation accuracy and repeatability, as well as higher clamping force, and can meet the processing of thin-walled pipe fittings.
The products can be widely used in pipe processing systems such as special laser pipe cutting machines.



2. Performance Parameters



Model number

G500D-230
Claw stroke 220mm
Maximum clamping force 1.5KN
Alloable pressure 0.3-0.9MPa
Limit speed 150r/min
Clamping range 8-228mm
Central height 315mm
Rotational  inertia

4.18kg.㎡

Rotating part weight 124kg
Whole unit weight 245kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.



​3. Dimensions


Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine 0


Specifications A B B1 C D E F G H I J K O R S
G500D-230 420 315 600 615 220 60 380 368 230 265 250 490 6 12-M8 18X22


4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



6. Production Line

Full Stroke Pneumatic 4 Jaw Rotary Laser Chuck For Fiber Laser Cutting Machine 1
