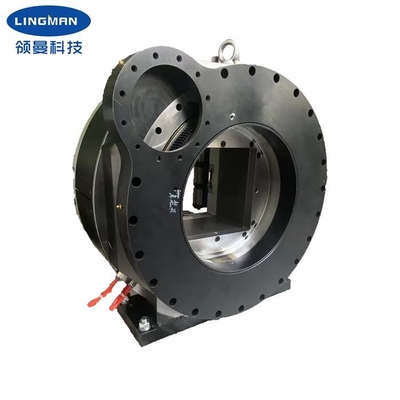

New Arrival Pneumatic Full Stroke Main Chuck Of Laser Pipe Cutter

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: G620DF-245

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 4800-5200 set

Packaging Details: Wood carton

Delivery Time: 10-15 work days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per month

Get Best Price
Highlight:

Laser Pipe Cutter Pneumatic Main Chuck

,

Pipe Cutter Full Stroke Main Chuck

Product Name:
Pneumatic Chuck
Claw Stroke:
235mm
Maximum Clamping Force:
2.0KN
Allowable Pressure:
0.2-0.92MPa
Limit Speed:
155r/min
Clamping Range:
6-245mm
Central Height:
310mm
Rotational Inertia:
5.0kg.㎡
Product Name:
Pneumatic Chuck
Claw Stroke:
235mm
Maximum Clamping Force:
2.0KN
Allowable Pressure:
0.2-0.92MPa
Limit Speed:
155r/min
Clamping Range:
6-245mm
Central Height:
310mm
Rotational Inertia:
5.0kg.㎡
New Arrival Pneumatic Full Stroke Main Chuck Of Laser Pipe Cutter

New Arrival Pneumatic Full Stroke Main Chuck Of Laser Pipe Cutter

1. Description



Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine. The chuck is a four-jaw full stroke master chuck designed for laser pipe cutting equipment. The chuck itself can work as an independent rotating spindle. The new chuck has the following advantages: 1. The installation position of the reducer can be adjusted arbitrarily; 2. The size of the same chuck is applicable to be processed coffin size range is larger, can be effectively used to clamp thin pipe or fragile pipe to prevent clamping flat, through the limit of the round hole, clamping range is wider
The products can be widely used in special laser pipe cutting machine and other pipe processing systems.



2. Performance Parameters



Model number

G620DF-245
Claw stroke 236mm
Maximum clamping force 2.1KN
Alloable pressure 0.2-0.9MPa
Limit speed 150/min
Clamping range 6-242mm
Central height 315mm
Rotational  inertia

5.2kg.㎡

Rotating part weight 120kg
Whole unit weight 250kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.



3. Dimensions


New Arrival Pneumatic Full Stroke Main Chuck Of Laser Pipe Cutter 0


Specifications A B B1 C D E F G H I J K O R S
G620DF-245 420 315 624 662 220 60 380 403.5 245X245 / 444.5 / / / 18X22


4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



6. Production Line

New Arrival Pneumatic Full Stroke Main Chuck Of Laser Pipe Cutter 1
