Home / Products / Pneumatic Rotary Chuck

220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment

220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment
220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment
220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: Pneumatic rotary chuck G500DC-230
Minimum Order Quantity: 1 set
Price: USD 4200-4900/set
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: Pneumatic Rotary Chuck Claw Stroke: 220mm
Maximum Clamping Force: 1.5KN Allowable Pressure: 0.3-0.9MPa
Limit Speed: 150r/min Clamping Range: 8-228mm
Central Height: 315mm Rotational Inertia: 4.20kg.㎡
High Light:

4 Jaw Pneumatic Rotary Chuck

,

220mm Stroke Pneumatic Rotary Chuck

220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment

 1. Descripition

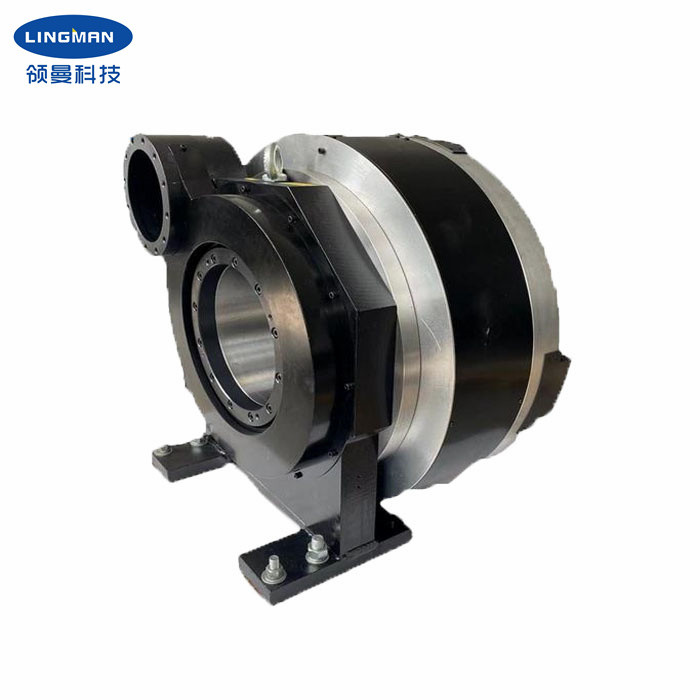

Our pneumatic rotary chuck is mainly designed for laser pipe cutting machine. The pneumatic rotary chuck can also grip round, rectangular, square, H and L tubes to meet different customer requirements.

This collet is the latest design. Chuck is designed for full stroke, so there is no need to adjust the position of the four PAWS. This pneumatic chuck has a claw stroke/diameter of 220mm and can hold up to 150 kg of pipe fittings. The center height of the chuck is 315mm. In the case of lower pressure, less clamping force can be obtained.

Pneumatic rotary chuck has better stability and wear resistance. Thanks to the internal cross roller bearings, the service life is longer, and the accuracy of rotation and repeat positioning is higher.




 2. Performance Parameters

  • Product name
Pneumatic rotary chuck
  • Model number
G500DC-230
  • Claw stroke
220mm
  • Maximunm clamping force
1.5KN
  • Allowable pressure
0.3-0.9MPa
  • Limit speed
150r/min
  • Clamping range
8-228mm
  • Central height
315mm
  • Rotational inertia
4.18Kg.m²
  • Rotating part weight
124kg
  • Whole unit weight
245kg


​ 3. Dimensions
220mm Stroke 4 Jaw Pneumatic Rotary Chuck For Laser Tube Cutting Equipment 0


Specifications A B B1 C D E F G H I R S
G500DC-230 420 315 600 615 220 60 380 368 230 265 12-M8 18X22


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws




5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.
