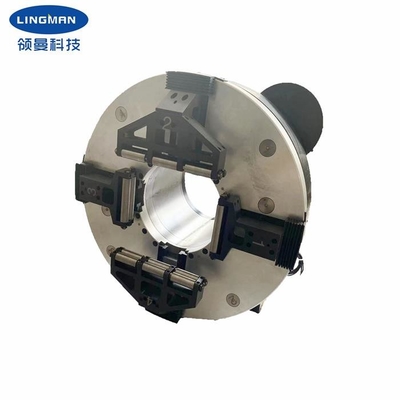

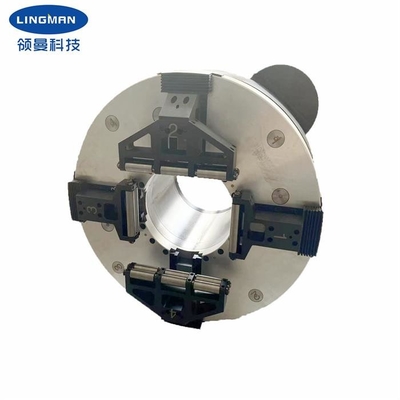

Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter

Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter
Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter
Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: Pneumatic rotary chuck G500DC-230
Minimum Order Quantity: 1 set
Price: USD 4200-4900/set
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: Pneumatic Rotary Chuck Claw Stroke: 215mm
Maximum Clamping Force: 1.45KN Allowable Pressure: 0.3-0.9MPa
Limit Speed: 150r/min Clamping Range: 8-230mm
Central Height: 315mm Rotational Inertia: 4.18kg.㎡
High Light:

Pipe Cutter Pneumatic Rotary Chuck

,

Full Stroke 4 Jaws Rotary Chuck

Highly Competitive 4 Jaw Pneumatic Rotary Chuck for Laser Tube Cutting Equipment

 1. Descripition


The whole series of laser chucks are researched and designed after many times to eliminate the inferiority and save the excellence. It has the characteristics of simple structure, convenient installation, strong applicability, clean and durable, reliable clamping and durable precision. This pneumatic rotary chuck is suitable for professional pipe cutting machine, tube plate machine and other gripping pipe parts, suitable for all kinds of round pipe, square pipe, rectangular pipe, elliptical pipe cutting processing, a little modification of the claw can be cut all kinds of shapes of pipe.

This pneumatic rotary chuck is the latest design. Chuck is designed for full stroke, so there is no need to adjust the position of the four jaws. This pneumatic chuck has a claw stroke/diameter of 220mm and can hold up to 150 kg of pipe fittings. The center height of the pneumatic rotary chuck is 315mm. In the case of low air pressure, the clamping force can be small, so as to meet the processing of thin-wall pipe fittings.




 2. Performance Parameters

  • Product name
Pneumatic rotary chuck
  • Model number
G500DC-230
  • Claw stroke
220mm
  • Maximunm clamping force
1.5KN
  • Allowable pressure
0.3-0.9MPa
  • Limit speed
150r/min
  • Clamping range
8-228mm
  • Central height
315mm
  • Rotational inertia
4.18Kg.m²
  • Rotating part weight
124kg
  • Whole unit weight
245kg


​ 3. Dimensions
Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter 0


Specifications A B B1 C D E F G H I R S
G500DC-230 420 315 600 615 220 60 380 368 230 265 12-M8 18X22


 4. Advantages

 a. Full stroke designed pneumatic rotary chuck
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws




5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.




 6. Production Line
Full Stroke 4 Jaws Pneumatic Rotary Chuck Of Pipe Tube Cutter 1
