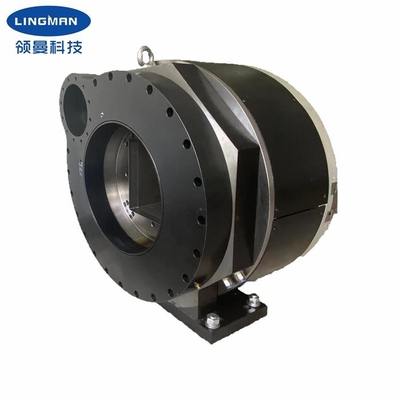

Square Hole Pneumatic Rotary Chuck Full Stroke Main Chuck Of Laser Pipe Cutter

1 set
MOQ
USD 4800-5200 set
Price
Square Hole Pneumatic Rotary Chuck Full Stroke Main Chuck Of Laser Pipe Cutter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pneumatic Rotary Chuck
Claw Stroke: 236mm
Maximum Clamping Force: 2.1KN
Allowable Pressure: 0.20-0.90MPa
Limit Speed: 150r/min
Clamping Range: 6-242mm
Central Height: 315mm
Rotational Inertia: 5.2kg.㎡
High Light:

Square Hole Pneumatic Rotary Chuck

,

Pneumatic Full Stroke Main Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: Pneumatic rotary chuckG620DF-245
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Product Description
Square Hole Pneumatic Rotary Chuck Full Stroke Main Chuck Of Laser Pipe Cutter

1. Description



Our company has 15 years of professional experience in the production of CNC lathe and laser cutting machine chuck professional manufacturers. The pneumatic rotary chuck is the latest laser chuck designed for 2022. When laser pipe cutter is cutting and processing pipe fittings, it is necessary to clamp and fix the pipe fittings with chuck. The whole chuck general schedule for the two groups of jaw can open and close respectively, but in thin tube used for clamping or fragile fittings, its jaw trip is not easy to control, clamp can make the pipe drop, the clamping make processing pipe clamp flat or minced caused by processing pipe scrap, in order to solve this problem, on the DF series full stroke square hole chuck chuck - G620DF - 245.
The chuck itself can work as an independent rotating spindle. The new pneumatic rotary chuck has the following advantages: 1, reducer installation position can be arbitrarily adjusted; 2. The same chuck size is suitable for processing coffin size range is larger, can be effectively used to clamp thin tube or fragile tube, prevent clamping flat, through the round hole limit, clamping range is wider
The products can be widely used in special laser pipe cutting machine and other pipe processing systems.



2. Performance Parameters



Product name Pneumatic rotary chuck

Model number

G620DF-245
Claw stroke 236mm
Maximum clamping force 2.1KN
Alloable pressure 0.2-0.9MPa
Limit speed 150/min
Clamping range 6-242mm
Central height 315mm
Rotational  inertia

5.2kg.㎡

Rotating part weight 120kg
Whole unit weight 250kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.



3. Dimensions


Square Hole Pneumatic Rotary Chuck Full Stroke Main Chuck Of Laser Pipe Cutter 0


Specifications A B B1 C D E F G H I J K O R S
G620DF-245 420 315 624 662 220 60 380 403.5 245X245 / 444.5 / / / 18X22


4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



6. Production Line
