Product Details
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: Pneumatic rotary chuck G620DF-245
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 4800-5200 set
Packaging Details: Wood carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Features: |
High Synchronization Accuracy |
Product Name: |
Pneumatic Rotary Chuck |
Claw Stroke: |
236mm |
Maximum Clamping Force: |
2.1KN |
Allowable Pressure: |
0.20-0.9MPa |
Limit Speed: |
150r/min |
Clamping Range: |
6-242mm |
Central Height: |
315mm |
Rotational Inertia: |
5.23kg.㎡ |
Material: |
Steel, Stainless Steel |
Features: |
High Synchronization Accuracy |
Product Name: |
Pneumatic Rotary Chuck |
Claw Stroke: |
236mm |
Maximum Clamping Force: |
2.1KN |
Allowable Pressure: |
0.20-0.9MPa |
Limit Speed: |
150r/min |
Clamping Range: |
6-242mm |
Central Height: |
315mm |
Rotational Inertia: |
5.23kg.㎡ |
Material: |
Steel, Stainless Steel |
1. Description
Our company has 15 years of professional experience in the production of CNC lathe and laser cutting machine. The full stroke laser chuck with square hole is a new product developed by our company this year.

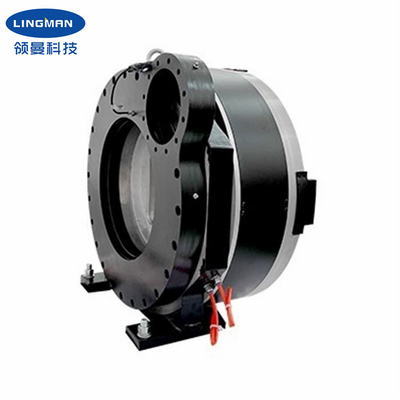

The pneumatic rotary chuck itself can work as an independent rotary spindle. The new designed chuck has the following advantages: 1. High transmission efficiency and synchronization accuracy; 2. Reduce the difficulty of processing and manufacturing, which is conducive to mass production; better dustproof effect and stronger pollution resistance.
Our company's laser pneumatic rotary chuck has the characteristics of simple structure, convenient installation, strong applicability, clean and durable, reliable clamping and lasting precision. It can be widely used in pipe processing machine tools such as special laser pipe cutting machines. This product is suitable for professional pipe cutting machines, tube sheet machines and other clamping fittings, and is suitable for cutting various round pipes, square pipes, rectangular pipes. A slightly modified clamp can cut pipes of various shapes.
2. Performance Parameters
| Product name | Pneumatic rotary chuck |
|
Model number |
G620DF-245 |
| Claw stroke | 236mm |
| Maximum clamping force | 2.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150/min |
| Clamping range | 6-242mm |
| Central height | 315mm |
| Rotational inertia |
5.2kg.㎡ |
| Rotating part weight | 120kg |
| Whole unit weight | 250kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G620DF-245 | 420 | 315 | 624 | 662 | 220 | 60 | 380 | 403.5 | 245X245 | / | 444.5 | / | / | / | 18X22 |
4. Advantages
| a. Full stroke designed pneumatic rotary chuck |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
6. Production Line
