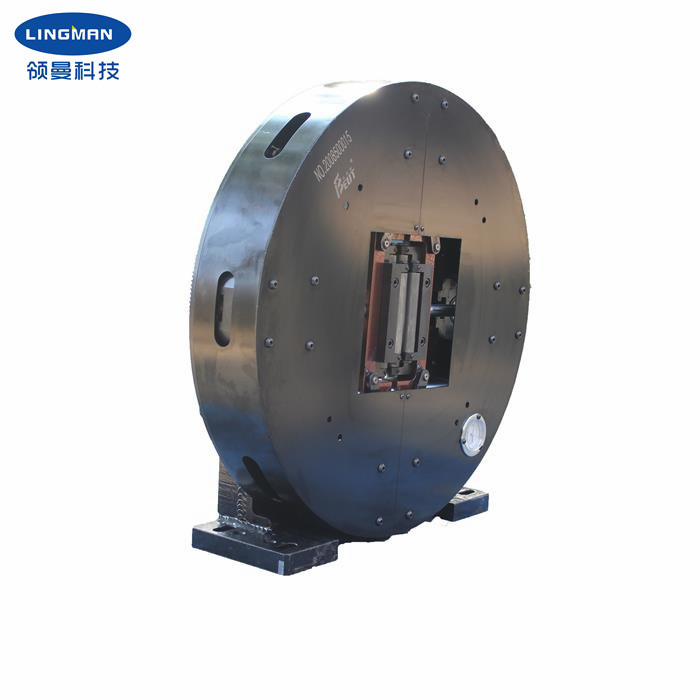

This laser rotary chuck is specially designed for laser pipe cutting machine. The product itself can be used as an independent rotating spindle, with a chuck in the middle, which can firmly clamp the workpiece when rotating. Quick clamping and loosening can be achieved by turning the air inlet sideways. The air source must be disconnected to work. The laser rotary chuck has a clamping stroke of 220 mm and a center height of 350 mm. It has the characteristics of simple structure, convenient installation, strong applicability, clean and durable, reliable clamping and durable precision. It can improve operation efficiency, reduce manufacturing cost and reduce labor intensity of employees.
The kind of laser rotary chuck has high mechanical efficiency, small energy loss, large locking force output and stable locking force, and has strong competitiveness compared with similar products on the market.
2. Performance Parameters
|Maximum clamping force||0.96KN|
|Rotating part weight||76kg|
|Whole unit weight||123kg|
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
