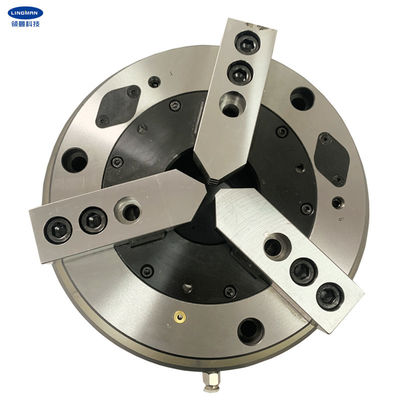

BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing

BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing

MOQ: 1 Set
Price: 265-780
Standard Packaging: Box
Delivery Period: 15 work days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 200 set per week
Detail Information
Place of Origin
China
Brand Name
Lingman
Certification
ISO9001
Place Of Origin:
Jiangsu, China
Brand Name:
Lingman
Customized Support:
OEM, ODM
Model Number:
BK200TQ
Power:
Pneumatic
Max. Clamping Force:
41.7KN
Claw Stroke/diameter:
4.7mm
Allowable Pressure:
0.4-0.9MPa
Clamping Range:
5-210mm
Net Weight:
25.5KG
Highlight:

Air CNC Lathe Power Chuck

,

CNC Lathe Power Chuck

,

Front Mounted Pneumatic Power Chuck

Product Description

BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing

Product Description



The obvious characteristics of this chuck are light weight, big hole diameter, high stroke and high speed when rotating. Because the connecting between the chuck and main shaft complies with the national standard(short cylinder connecting mode), there’s no need to change the structure of the lathe and just only prepare the matching flange which can connect to the chuck and machine tool when installing.This kind of chuck is front mounted pneumatic chuck and is widely used in lathe, pipe thread machine tool and welding equipment.



It is easy to install the chuck.The chuck body is the cylinder, with piston and inverted valve inside to achieve super-long time pressure-keeping function (more than 24 hours). The clamping and loosing movement is achieved by rotary air inlet at the side. The machine will not work before cutting off the gas supply.


2 Performance Parameters





BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing 0

Specifications D D1 D2 D3 d H H1 H2 z-d
BK130TQ 135 175 108 95 25 132 101 66 3-M8
BK160TQ 175 219 142 130 35 138 103 72 3-M8
BK200TQ 214 258 180 165 52 145 105 72 3-M10







3 Company Information

Located in Changzhou CIty, Jiangsu Province, Lingman Machinery Technology(Changzhou) Co.,Ltd. . is an enterprise focusing on R&D, production and sales of various pneumatic chucks, electric chucks. hydraulic chucks and other power chucks. With production equipment and innovative design capabilities, it can provide users with satisfactory service. It also can design and produce various types of machine tools, non-standard equipment, and special power fixtures and chucks for laser pipe cutting machines according to different users' needs. The company is based on technological innovation to provide every customer with suitable products, caring services, continuous technology research and development, fully implement quality management, continue to improve the service system, and look forward to winning new and old customers favor.

Looking forward to be your Chinese partner in chuck business!



4 Product Line



BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing 1BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing 2BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing 3BK160TQ Front Mounted Pneumatic Air CNC Lathe Power Chuck For Processing 4





5 Our Service



1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.

3.Professional QC team to guarantee the high quality.

4.Providing OEM & ODM service.



6 FAQ



Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.


Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.



Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.



Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.
