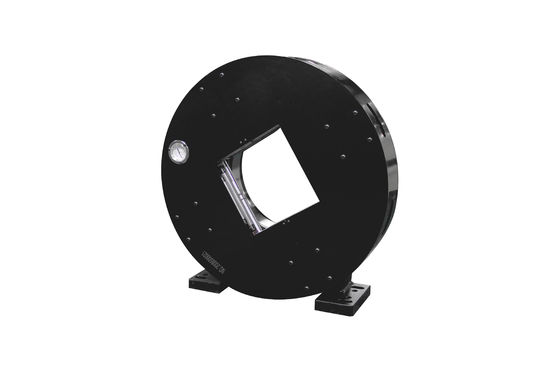

Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck

Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck
Features Gallery Product Description Request A Quote
Claw Stroke: 110mm
Maximum Clamping Force: 0.8KN
Allowable Pressure: 0.4-0.9Mpa
Limit Speed: 500 R/min
Clamping Range: 3-110mm
Central Height: 230mm
Rotational Inertia: 1.44Kg.㎡
Rotating Part Weight: 66kg
Whole Unit Weight: 116kg

0.9Mpa Laser Chuck


Full Stroke Laser Chuck


110mm four jaw independent chuck

Basic Infomation
Place of Origin: CHINA-CHANGZHOU
Brand Name: LINGMAN
Model Number: G360J-110
Payment & Shipping Terms
Packaging Details: wooden box,packing measurements depend on products.
Delivery Time: 3-10 work days
Payment Terms: T/T
Product Description



Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck


At present, it is widely used in CNC lathe modification, robot end clamping, laser pipe cutting equipment, laser welding equipment, spinning sealing equipment, tapping machine equipment and other automatic special machine equipment. The hydraulic/pneumatic rotary cylinder is built in the chuck, which eliminates the need to install an additional rotary cylinder with a forced loosening and clamping function, which is used in conjunction with automated production. Easy to install, quick to build working clamping system, pneumatic chuck cylinder body is enlarged, increase clamping force, collet/sub-claw quick replacement design, high working flexibility DGDR chuck with central through hole design, with automatic feeding system Work, loading and unloading without stopping, high production capacity suitable


Model Claw stroke Maximum clamping stroke Allowable pressure Limit speed Clamping range Central height Rotational inertia Rotating part weight Whole unit weight
G360J-110 110 0.8 0.4-0.9 500 Φ3-Φ110 230 1.44 66 116
G400J-165 140 1.2 0.4-0.9 500 Φ20-Φ160 260 1.26 78 111
G600J-225 220 1.7 0.4-0.9 500 0-Φ220 350 6.5 129 177
G880J-355 180 4.5 0.4-0.9 500 Φ20-Φ350 420 18.2 210 315







Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck 0Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck 1Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck 2Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck 3




Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck 4Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck 5





Q:What's the OEM serivce of OREE LASER?

A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001



A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.


B:Good material and Quality:


Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine


C.Technicial support:


We can revise size as your request to meet your machine.


D.Best services:

We do best effort we can to our customers.
