Product Details
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G600JF-230
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 4100-7000/set
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Claw Stroke: |
220mm |
Maximum Clamping Force: |
1.7KN |
Allowable Pressure: |
0.4-0.9MPa |
Limit Speed: |
500r/min |
Clamping Range: |
10-230mm |
Central Height: |
350mm |
Rotational Inertia: |
4.5kg.㎡ |
Rotating Part Weight: |
141kg |
Whole Unit Weight: |
219kg |
Claw Stroke: |
220mm |
Maximum Clamping Force: |
1.7KN |
Allowable Pressure: |
0.4-0.9MPa |
Limit Speed: |
500r/min |
Clamping Range: |
10-230mm |
Central Height: |
350mm |
Rotational Inertia: |
4.5kg.㎡ |
Rotating Part Weight: |
141kg |
Whole Unit Weight: |
219kg |
1. Description

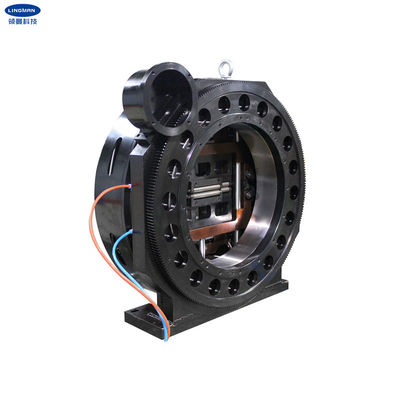

Our laser chuck is specially designed for laser tube cutting equipment.The production itself can be used as an independent rotating spindle, with a chuck that can firmly clamp the work-piece while rotating. Fast clamping and loosening actions can be achieved through the side rotating air intake, and the air source has to be disconnected to work.
The chuck outputs by using a cylinder directly, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Because the cylinder is used to clamp the work-piece directly, the working stroke of the cylinder is the working stroke of the chuck, and the clamping range is wide.
The chuck is designed as a square middle hole. Compared with a round hole chuck, the size of square tube is increased and scoped of used is expanded.
2. Performance Parameters
|
G600JF-230 |
|
220mm |
|
1.7KN |
|
0.4-0.9MPa |
|
500r/min |
|
10-230mm |
|
350mm |
|
4.5g.m2 |
|
141kg |
|
219kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | L | O | R | S |
| G600JF-230 | 520 | 350 | 680 | 690 | 191 | 120 | 460 | 194.5 | 330 | 376 | 402 | 29.5 | 230 | 20 | 12-M8 | 18 |
4.Advantages
1. Full stroke design
2. Wide range of applications, diversification of processing profiles
3. High repetitive positioning accuracy
4. Low maintenance cost, long service life
5. Multiple configurations are available
5.1 Solid or hollow
5.2 Comb-type or mortise-groove type claws
5. Production Line
6. Our Service
1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.
3. Professional QC team to guarantee the high quality.
4. Providing OEM & ODM service.
