G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range

G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range
Features Gallery Product Description Request A Quote
Claw Stroke: 120mm
Limit Speed: 100r/min
Clamping Range: Φ30-Φ500mm
Central Height: 560mm
Rotational Inertia: 118.4Kg.㎡
Rotating Part Weight: 728kg
Whole Unit Weight: 972KG

100rpm Laser Rotary Chuck


500mm Laser Rotary Chuck


ISO Laser Rotary Attachment

Basic Infomation
Place of Origin: CHINA-CHANGZHOU
Brand Name: LINGMAN
Model Number: G1000B-520
Payment & Shipping Terms
Packaging Details: wooden box,packing measurements depend on products.
Delivery Time: 3-10 work days
Payment Terms: T/T
Product Description

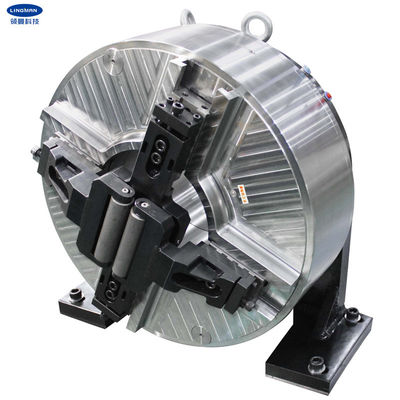

G1000Bs-520 Automatic Main chuck and rotary CNC fiber laser tube cutting machine chuck for metal tube


This product is specially designed for laser pipe cutter.The product itself can be used as an independent spindle with a chuck in the middle which can firmly clamp the wokrpiece and rotate at the same time.With the built-in two indenpent cylinders,one-way valve and check valve,it has a long-term pressure-holding function (more than 8 hours),rapid clamping and loosening action can be achieved through the side rotation of air inlet,and disconnect the air source to start work.After the product base is fixed,connect the compressed air source(0.4-0.9Mpa)to realize clamping and driving the workpiece to rotate.It is mainly used for workpiece clamping and rotating.



Model Claw Stroke(mm) Maximum clamping force(KN) Allowable pressure(Mpa) Limit speed(r/min) Clamping range((mm) Central height(mm) Rotational inertia(Kg.㎡) Rotating part weight(Kg) Whole unit weight(Kg)
G800B-400 120 9.5 0.25-1.0 150 Φ20-Φ390 450 40.4 426 601
G900B-440 107.5 9.7 0.25-1.0 150 Φ20-Φ430 480 55.4 454 642
G1000B-520 120 15.7 0.25-1.0 120 Φ30-Φ500 560 118.4 728 972
G1200B-630 140 21.2 0.25-1.0 100 Φ50-Φ610 660 272 1257 1373




G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range 0G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range 1G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range 2G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range 3




G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range 4G1000Bs-520 Laser Rotary Chuck 30-500mm Clamping Range 5





Q:What's the OEM serivce of OREE LASER?

A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001



A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.


B:Good material and Quality:


Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine


C.Technicial support:


We can revise size as your request to meet your machine.


D.Best services:

We do best effort we can to our customers.
