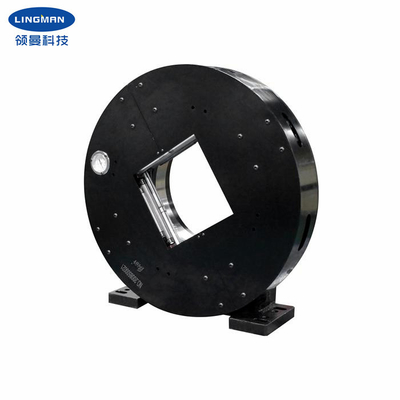

Rotary Pneumatic Laser Chuck Double Acting For Laser Cutting Machine

1 set
MOQ
USD 3800-6500 set
Price
Rotary Pneumatic Laser Chuck Double Acting For Laser Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Claw Stroke: 220mm
Maximum Clamping Force: 1.7KN
Allowable Pressure: 0.25-0.9MPa
Limit Speed: 200r/min
Clamping Range: 10-230mm
Central Height: 350mm
Rotational Inertia: 4.5kg.㎡
Rotating Part Weight: 141kg
Feature: Lower Failure Rate
Highlight:

Double Acting Pneumatic Laser Chuck

,

Cutting Machine Pneumatic Laser Chuck

,

200r/min Pneumatic Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: Laser Chuck G600JF-230
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Product Description
Lower Energy Consumption Pneumatic Double-Acting Laser Chuck For Laser Cutting Machine

1. Description



This laser chuck is commonly used in laser fiber cutting machine, can be used as an independent rotating spindle. At the same time, the workpiece can be tightly held while rotating.

The side-rotating air intake allows for quick clamping and loosening action and can operate without disconnecting the air source.
Chuck directly using cylinder output. High mechanical efficiency, small energy loss, large output clamping force, stable clamping force. Compared with other laser chucks in the market, the product has simple structure, few components, light weight, low failure rate, stable performance, small moment of inertia, low energy consumption.

Simple pneumatic double action laser chuck square hole is suitable for laser cutting equipment, rotary cutting round tube, square tube, elliptical tube and so on.





 2. Performance Parameters



  • Product name
Laser chuck
  • Model number
G600JF-230
  • Claw stroke
220mm
  • Maximunm clamping force
1.7KN
  • Allowable pressure
0.25-0.9MPa
  • Limit speed
200r/min
  • Clamping range
10-170mm
  • Central height
350mm
  • Rotational inertia
4.5g.m²
  • Rotating part weight
141kg
  • Whole unit weight
219kg



3.Dimensions


Rotary Pneumatic Laser Chuck Double Acting For Laser Cutting Machine 0


Specifications A B B1 C D E F G H I J K L O R S
G600JF-230 520 350 680 690 191 120 460 194.5 330 376 402 29.5 230 20 12-M8 18


 4. Advantages



  1. Full stroke design

  2. Wide range of applications, diversification of processing profiles

  3. High repetitive positioning accuracy
  4. Low maintenance cost, long service life
  5. Multiple configurations are available
    5.1 Solid or hollow

    5.2 Comb-type or mortise-groove type claws



5. Our Service



1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.

3. Professional QC team to guarantee the high quality.

4. Providing OEM & ODM service.



6. Production Line

Rotary Pneumatic Laser Chuck Double Acting For Laser Cutting Machine 1

Rotary Pneumatic Laser Chuck Double Acting For Laser Cutting Machine 2
