G800J-355 Simple Pneumatic Chuck Lathe Chuck With Reducer Mounting Seat

Category:
Laser Chuck
Price:
USD 3500-3900/set
Payment Method:
T/T, L/C
Specifications
Product Name:
Laser Pneumatic Chuck, Simple Structure
Claw Stroke:
180mm
Maximum Clamping Force:
4.5KN
Limit Speed:
150r/min
Allowable Pressure:
0.25-0.9MPa
Clamping Range:
20-350mm
Rotational Inertia:
18.2kg.㎡
Central Height:
420mm
Highlight:

Simple Pneumatic Chuck 150r/min

,

Lathe Chuck With Reducer Mounting Seat

,

Lathe Laser Chuck

Introduction

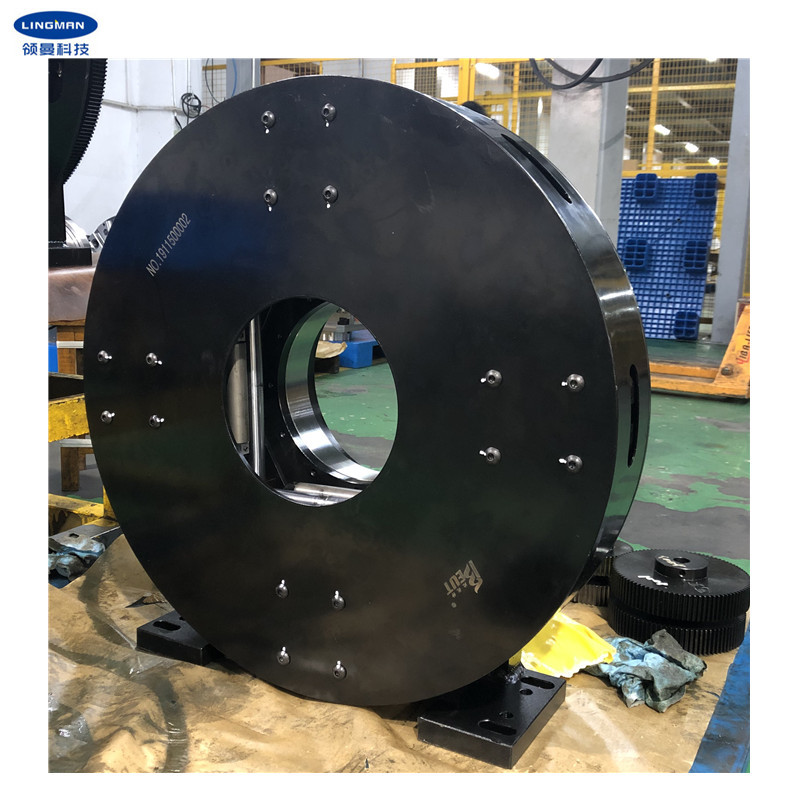

G800J-355 Simple Pneumatic Chuck Lathe Chuck with Reducer Mounting Seat
 1. Descripition

 Our laser chuck is specially designed for laser pipe cutting machine.
This chuck is mainly used to clamp round tubes with different sizes. Its clamping range is Φ20-350mm and central height is 420mm. It can meet normal pipe cutting needs.

This laser chuck has a simple structure, few components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial dimension of the chuck is small, and the cost for realizing the zero tailings si lower. At the same time, it also saves the cost of production. The axial dimension of the chuck is small, and the cost for realizing the zero tailing is lower.
Factory direct selling, welcome to inquiry.

Explore International Market, Win- Win Cooperations!


 2. Performance Parameters
  • Model number
G800J-355
  • Claw stroke
180mm
  • Maximunm clamping force
4.5KN
  • Allowable pressure
0.25-0.9MPa
  • Limit speed
150r/min
  • Clamping range
20-350mm
  • Central height
420mm
  • Rotational inertia
18.2Kg.m2


3. Dimensions
 G800J-355 Simple Pneumatic Chuck Lathe Chuck With Reducer Mounting Seat

Specifications A B B1 C D E F G H I R S
G600J-225 520 350 680 690 179 120 460 185 225 280 12-M8 18


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws



 5. Production Line
G800J-355 Simple Pneumatic Chuck Lathe Chuck With Reducer Mounting Seat

6. FAQ

Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.


Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.



Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.



Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.
