| MOQ: | 1 set |
| Price: | USD 8500-8900 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50 sets per month |
1. Description

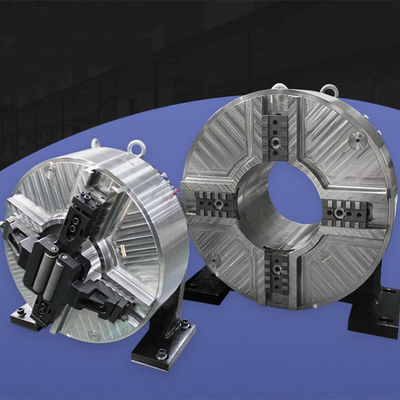

Our laser chuck is pneumatic type and is mainly used in laser pipe cutting machine, plasma cutting machine and welding machine. Our chuck can clamp different shapes of pipes, like round pipe, square pipe, rectangular pipe, L-shape pipe and H-shape pipe. Compared with traditional lathe chuck, laser chuck improves the cutting accuracy, rotation accuracy and repeated positioning accuracy. The application of laser chuck makes laser cutting more efficient and quickly.
Our laser chuck is controlled by switching single and double cylinders, which produces different clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes. Because of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.
2. Performance Parameters
|
Model number |
G800D-360 |
| Claw stroke | 260mm |
| Maximum clamping force | 4.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 15-360mm |
| Central height | 425mm |
| Rotational inertia | 17.69kg.m2 |
| Rotating part weight | 251kg |
| Whole unit weight | 369kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G800D-360 | 652 | 425 | 800 | 825 | 280 | / | 587 | 405.5 | 360 | 390 | 430 | 650 | 8 | 12-M12 | 18X20 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e.Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
7. FAQ
1. Can we visit your company to inspect products before delivery?
You are welcome to visit our company to inspect us and our products.
2. What's your lead time?
Within 15-35 days after confirming the order.
3.What can you buy from us?
Single bearing full stroke double-acting chuck, pneumatic connecting rod four-jaw double-action chuck, full-stroke double-action chuck, leveraged hollow(solid) four-jaw double-acting feeding chuck, double-acting chuck for professional pipe cutting machine, etc.
4. Why should you buy from us not from other suppliers?
①We are the direct factory with good price and fast lead time.
②Professional design team work with you.
③Professional QC team to guarantee the high quality.
④Providing OEM & ODM service.
5.What are your payment terms?
T/T, L/C, West Union, Paypal, etc.
|
|
| MOQ: | 1 set |
| Price: | USD 8500-8900 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50 sets per month |
1. Description
Our laser chuck is pneumatic type and is mainly used in laser pipe cutting machine, plasma cutting machine and welding machine. Our chuck can clamp different shapes of pipes, like round pipe, square pipe, rectangular pipe, L-shape pipe and H-shape pipe. Compared with traditional lathe chuck, laser chuck improves the cutting accuracy, rotation accuracy and repeated positioning accuracy. The application of laser chuck makes laser cutting more efficient and quickly.
Our laser chuck is controlled by switching single and double cylinders, which produces different clamping forces, which has more advantages of clamping thin-walled tubes and heavy-duty pipes. Because of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and feed chuck matched with it are usually installed in pairs on the machine.
2. Performance Parameters
|
Model number |
G800D-360 |
| Claw stroke | 260mm |
| Maximum clamping force | 4.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 15-360mm |
| Central height | 425mm |
| Rotational inertia | 17.69kg.m2 |
| Rotating part weight | 251kg |
| Whole unit weight | 369kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G800D-360 | 652 | 425 | 800 | 825 | 280 | / | 587 | 405.5 | 360 | 390 | 430 | 650 | 8 | 12-M12 | 18X20 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e.Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
7. FAQ
1. Can we visit your company to inspect products before delivery?
You are welcome to visit our company to inspect us and our products.
2. What's your lead time?
Within 15-35 days after confirming the order.
3.What can you buy from us?
Single bearing full stroke double-acting chuck, pneumatic connecting rod four-jaw double-action chuck, full-stroke double-action chuck, leveraged hollow(solid) four-jaw double-acting feeding chuck, double-acting chuck for professional pipe cutting machine, etc.
4. Why should you buy from us not from other suppliers?
①We are the direct factory with good price and fast lead time.
②Professional design team work with you.
③Professional QC team to guarantee the high quality.
④Providing OEM & ODM service.
5.What are your payment terms?
T/T, L/C, West Union, Paypal, etc.
