PRODOCUT OVERWIEW:

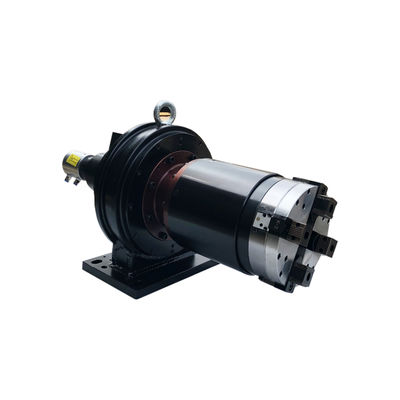

Stable Clamping Force Four-Jaw Double-Acting Feeding Chuck for Laser Cutting Machine
This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.
Lingman Machinery Technology (ChangZhou)Co., Ltd
Located in Changzhou City, Jiangsu Province, Lingman Machinery Technology(Changzhou) Co.,Ltd. is an enterprise focusing on R&D, production and sales of various pneumatic chucks, electric chucks, hydraulic chucks and other power chucks. With production
equipment and innovative design capabilities, it can provide users with satisfactory service.
It also can design and produce various types of machine tools, non-standard equipment, and special power fixtures and chucks for laser pipe cutting machines according to different users' needs. The company is based on technological innovation to provide every customer with suitable products, caring services, continuous technology research and development, fully implement quality management, continue to improve the service system, and look forward to winning new and old customers favor.
Looking forward to be your Chinese partner in chuck business!
| Model |
Claw stroke/Diameter(mm) |
Maximum clamping force(KN) |
Allowable pressure(Mpa) |
Limit speed(r/min) |
Clamping range(mm) |
Central height(mm) |
Rotational inertia(kg.㎡) |
Rotating part weight(kg) |
Whole unit weight(kg) |
| W110J |
20 |
3.2 |
0.3-1.0 |
500 |
Φ4-Φ100 |
110 |
0.3 |
19.8 |
30 |
| W165J |
33 |
4.3 |
0.3-1.0 |
500 |
Φ10-Φ165 |
175 |
0.3 |
69 |
95 |
| W220J |
70 |
4.4 |
0.3-1.0 |
500 |
Φ10-Φ210 |
200 |
0.7 |
102 |
140 |
| W300J |
86 |
9.8 |
0.3-1.0 |
500 |
Φ10-Φ314 |
250 |
2.2 |
145 |
175 |
SIMILIAR PRODUCT:
WORK SHOP:
FAQ:
Q:What's the OEM serivce of OREE LASER?
A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001
