Place of Origin: | China |
---|---|
Brand Name: | Lingman |
Model Number: | W220J |
Minimum Order Quantity: | 1 set |
Price: | USD 2500-2800/set |
Packaging Details: | Wood carton |
Delivery Time: | 15-20 work days |
Payment Terms: | T/T, L/C |
Supply Ability: | 50 sets per month |
Product Name: | Feeding Chuck | Claw Stroke: | 70mm |
---|---|---|---|
Maximum Clamping Force: | 4.4KN | Allowable Pressure: | 0.3-1MPa |
Limit Speed: | 500r/min | Clamping Range: | 10-210mm |
Central Height: | 200mm | Rotational Inertia: | 102kg |
Whole Unit Weight: | 140kg | Material: | Steel, Stainless Steel |
High Light: | Four Jaw Double Acting Feeding Chuck,Medium Solid Feeding Chuck,Lever Type Feeding Chuck |
1. Description

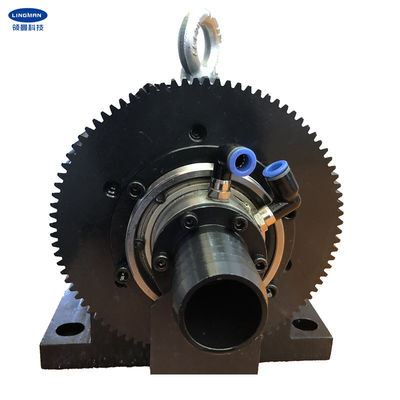

This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.
If you need customzied chuck, we also can provide customized plan according to your need.
2. Performance Parameters
|
W220J |
|
70mm |
|
4.4KN |
|
0.3-1.0MPa |
|
500r/min |
|
10-210mm |
|
200mm |
|
0.7kg.m2 |
|
102kg |
|
140kg |
3. Dimensions
Specifications | A | B | B1 | C | D | E | F | G | I | J | L | M | N | O | P | Q | R | S | T |
W220J | 300 | 200 | 204 | 417 | 200 | 150 | 250 | 813.5 | 160 | 198 | 20 | 36 | 4 | 5 | 22 | M8 | 8-M10 | 18 | 420.5 |
4. Advantages
a. Full stroke design |
b. Wide range of applications, diversification of processing profiles |
c. High repetitive positioning accuracy |
d. Low maintenance cost, long service life |
e. Multiple configurations are available e.2 Comb-type or mortise-groove type claws |
