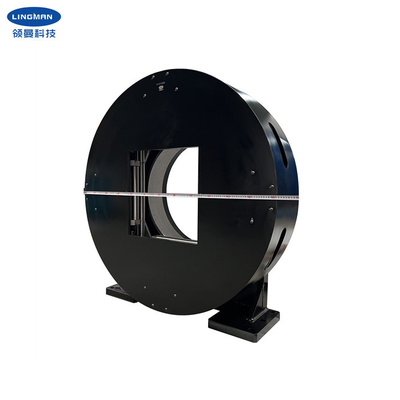

Professional Overloaded Pneumatic Chuck For Heavy Pipe Cutting Machine

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: G900B-440

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 8000-13000/set

Packaging Details: Wood carton

Delivery Time: 15-30 work days

Payment Terms: T/T, L/C

Supply Ability: 500 sets per month

Get Best Price
Highlight:

Overloaded Pneumatic Chuck

,

Heavy Pipe Cutting Machine Pneumatic Chuck

,

Overloaded Laser Chuck

Product Name:
Pneumatic Chuck
Jaw Stroke:
215mm
Clamping Range:
20-440mm
Central Height:
480mm
Maximum Clamping Force:
9.7KN
Allowable Pressure:
0.25-1.0MPa
Limit Speed:
120r/min
Rotational Inertia:
55.4kg.㎡
Rotating Part Weight:
454kg
Whole Weight:
642kg
Product Name:
Pneumatic Chuck
Jaw Stroke:
215mm
Clamping Range:
20-440mm
Central Height:
480mm
Maximum Clamping Force:
9.7KN
Allowable Pressure:
0.25-1.0MPa
Limit Speed:
120r/min
Rotational Inertia:
55.4kg.㎡
Rotating Part Weight:
454kg
Whole Weight:
642kg
Professional Overloaded Pneumatic Chuck For Heavy Pipe Cutting Machine
Professional Overloaded Pneumatic Chuck For Heavy Pipe Cutting Machine

 1. Descripition

Model G900B-440 is professional pneumatic chuck for heavy-duty pipe cutting machine, it can clamp round pipe up to Φ440mm with 1000KG weight. This type of pneumatic chuck is stable in structure and it can withstand large radial force, axial force and overturning force. When working, it rotates smoothly with high accuracy and low noise.In addition, it is with light weight and small moment of inertia, so it can greatly improvde cutting efficiency and save energy,

Our laser chuck is pneumatic type and is mainly used in laser pipe cutting machine, plasma cutting machine and welding machine. It can support different shapes of pipes, such as round pipe, square pipe, rectangular pipe, L-shape pipe and H-shape pipe. It improves the cutting accuracy, rotation accuracy and repeated positioning accuracy, compared with traditional chuck. The application of laser chuck makes laser cutting more efficient and quickly.




 2. Performance Parameters

  • Model number
G900B-440
  • Jaw stroke
215mm
  • Maximunm clamping force
9.7KN
  • Allowable pressure
0.25-1.0MPa
  • Limit speed
120r/min
  • Clamping range
20-440mm
  • Central height
480mm
  • Rotational inertia
55.4Kg.m2
  • Rotating part weight
454kg
  • Whole unit weight
642kg


3. Dimensions


Professional Overloaded Pneumatic Chuck For Heavy Pipe Cutting Machine 0

Specifications A B B1 C D E F G H I R S
G900B-440 680 480 880 925 296 250 620 332 440 454 M10 18


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws



 5. Production Line
Professional Overloaded Pneumatic Chuck For Heavy Pipe Cutting Machine 1

 6. Our Service


 a. We are the direct factory with good price and fast lead time.
 b. Professional design team work with you.
 c. Professional QC team to guarantee the high quality.
