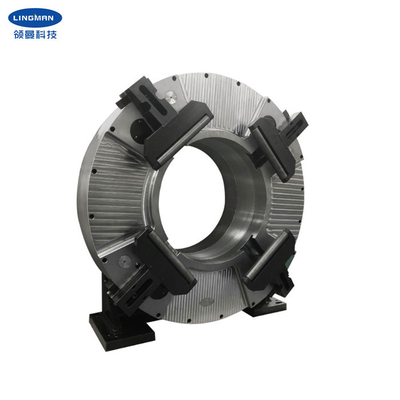

520MM Through Hole Pneumatic Chuck For Laser Pipe Cutting Machine

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: G1000B-520

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 8000-18000/set

Packaging Details: Wood carton

Delivery Time: 15-30 work days

Payment Terms: T/T, L/C

Supply Ability: 500 sets per month

Get Best Price
Highlight:

520MM Through Hole Pneumatic Chuck

,

Laser Pipe Cutting Machine Pneumatic Chuck

,

Laser Chuck 120r/min

Product Name:
Pneumatic Chuck
Jaw Stroke:
240mm
Clamping Range:
30-500mm
Central Height:
560mm
Maximum Clamping Force:
15.7KN
Allowable Pressure:
0.25-1.0MPa
Limit Speed:
120r/min
Rotational Inertia:
118.4kg.㎡
Rotating Part Weight:
728kg
Whole Weight:
972kg
Product Name:
Pneumatic Chuck
Jaw Stroke:
240mm
Clamping Range:
30-500mm
Central Height:
560mm
Maximum Clamping Force:
15.7KN
Allowable Pressure:
0.25-1.0MPa
Limit Speed:
120r/min
Rotational Inertia:
118.4kg.㎡
Rotating Part Weight:
728kg
Whole Weight:
972kg
520MM Through Hole Pneumatic Chuck For Laser Pipe Cutting Machine
520MM Through-hole Pneumatic Chuck For Laser Pipe Cutting Machine

 1. Descripition

This kind of chuck is four-jaws dual power and automatic two-two-center structure. Because of the long length of the parts processed by the cutting machine, the main chuck is used as head position of laser cutting machine and  the rear chuck is matched with it. This model is professional pneumatic chuck for heavy-duty pipe cutting machine, it can clamp round pipe up to Φ440mm with 1000KG weight. This type of pneumatic chuck is stable in structure and it can withstand large radial force, axial force and overturning force. When working, it rotates smoothly with high accuracy and low noise.

Our laser chuck is pneumatic type and is mainly used in laser pipe cutting machine, plasma cutting machine and welding machine. It can support different shapes of pipes, such as round pipe, square pipe, rectangular pipe, L-shape pipe and H-shape pipe. It improves the cutting accuracy, rotation accuracy and repeated positioning accuracy, compared with traditional chuck. The application of laser chuck makes laser cutting more efficient and quickly.




 2. Performance Parameters

  • Model number
G1000B-520
  • Jaw stroke
240mm
  • Maximunm clamping force
15.7KN
  • Allowable pressure
0.25-1.0MPa
  • Limit speed
120r/min
  • Clamping range
30-500mm
  • Central height
560mm
  • Rotational inertia
118.4Kg.m2
  • Rotating part weight
728kg
  • Whole unit weight
972kg


3. Dimensions


520MM Through Hole Pneumatic Chuck For Laser Pipe Cutting Machine 0

Specifications A B B1 C D E F G H I R S
G1000B-520 900 560 880 925 296 250 620 332 440 454 M10 18


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws



 5. Production Line
520MM Through Hole Pneumatic Chuck For Laser Pipe Cutting Machine 1

 6. Our Service


 a. We are the direct factory with good price and fast lead time.
 b. Professional design team work with you.
 c. Professional QC team to guarantee the high quality.
