162mm Diameter Pneumatic Laser Chuck 4 Jaws For Pipe Laser Cutting Machine

162mm Diameter Pneumatic Laser Chuck 4 Jaws For Pipe Laser Cutting Machine

MOQ: 1 set
Price: USD 4800-5400/set
Standard Packaging: Wood carton
Delivery Period: 15-20 work days
Payment Method: T/T, L/C
Supply Capacity: 500 sets per month
Detail Information
Place of Origin
Changzhou, Jiangsu, China
Brand Name
Lingman
Model Number
Laser Chuck G400DB-175
Claw Stroke:
162mm
Maximum Clamping Force:
0.8KN
Allowable Pressure:
0.2-0.9MPa
Limit Speed:
200r/min
Clamping Range:
8-170mm
Central Height:
260mm
Rotational Inertia:
3.2kg.㎡
Rotating Part Weight:
125kg
Whole Unit Weight:
190kg
Application:
Laser Cutting Machine
Highlight:

162mm Diameter Pneumatic Laser Chuck

,

4 Jaws Pneumatic Laser Chuck

,

Pipe Laser Cutting Pneumatic Chuck

Product Description

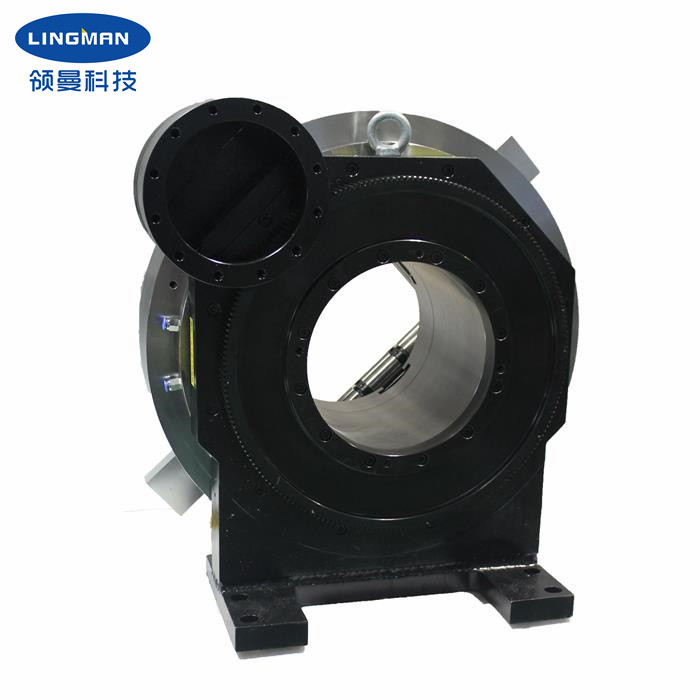

CNC Lathe Pneumatic Laser Chuck with 4 Jaws for Pipe Laser Cutting Machine

1. Description



Our laser chuck is specially designed for laser pipe cutting machine. The product itself can be used as an independent spindle, with chucks in the middle that can firmly clamp the workpiece and rotate at the same time.

Laser chuck can work in full stroke without the need to adjust four additional claws. Can clamp all applicable pipe fittings to improve production efficiency. Chuck adopts fully enclosed structure, with better stability and wear resistance. It has the characteristics of simple structure, convenient installation, strong applicability, clean and durable, reliable clamping and durable precision. Cross roller bearing, longer service life than traditional laser chuck, higher rotation accuracy and repeat positioning accuracy, greater clamping force than similar products on the market.

When using the chuck, the air pressure should be controlled in the range of 0.4 ~ 0.9MPa, and the air pipe with pressure greater than 1.6MPa should be selected to connect to the product, and the air pipe should be far away from heat source and open fire.



 2. Performance Parameters



  • Product name
Laser chuck
  • Model number
G400DB-175
  • Claw stroke
162mm
  • Maximunm clamping force
0.8KN
  • Allowable pressure
0.2-0.9MPa
  • Limit speed
200r/min
  • Clamping range
8-170mm
  • Central height
260mm
  • Rotational inertia
3.2kg.m2
  • Rotating part weight
125kg
  • Whole unit weight
190kg



3. Dimensions



162mm Diameter Pneumatic Laser Chuck 4 Jaws For Pipe Laser Cutting Machine 0


Specifications A B B1 C D E F G H I J K O R
G400DB-175 500 260 500 555 160 100 440 316 175 215 196 400 6 12-M8


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow type laser chuck

  e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.





 6. Production Line

162mm Diameter Pneumatic Laser Chuck 4 Jaws For Pipe Laser Cutting Machine 1
