Product Details
Place of Origin: China
Brand Name: Lingman
Model Number: G700DF-290
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD7100/SET
Packaging Details: Wooden box
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 500sets/month
Claw Stroke/diameter: |
290mm |
Max Clamp Force: |
3.5kn |
Allow Pressure: |
0.2-0.9MPa |
Clamping Range: |
10-290mm |
Central Height: |
355mm |
Rotational Inertia: |
18kg.m2 |
Rotating Part Weight: |
195 Kg |
Whole Unit Weight: |
330kg |
Claw Stroke/diameter: |
290mm |
Max Clamp Force: |
3.5kn |
Allow Pressure: |
0.2-0.9MPa |
Clamping Range: |
10-290mm |
Central Height: |
355mm |
Rotational Inertia: |
18kg.m2 |
Rotating Part Weight: |
195 Kg |
Whole Unit Weight: |
330kg |

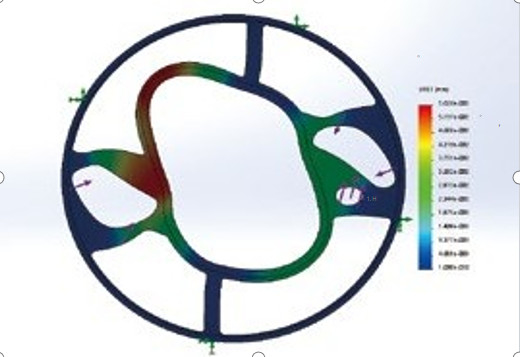

Product description
The product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, with a chuck that can firmly clamp the workpiece while rotating. Fast clamping and loosening actions can be achieved through the side rotating air intake, and the air source has to be disconnected to work.
The product outputs by using a cylinder directly, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Because the cylinder is used to clamp the workpiece directly, the working stroke of the cylinder is the working stroke of the chuck, and the clamping range is wide. The cylinder is used for outputting directly, the output force and the air pressure are in linear proportion, which makes it easy to achieve software control. The chuck has a simple structure, few elements and components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial dimension of the chuck is small, and the cost for achieving zero tailings is lower.
The product is designed as a square middle hole. Compared with a round hole chuck, the size of square tube is increased and the scope of use is expanded.
Performance Parameter
| Model |
Claw stroke/diameter(mm) |
Maximum clamping force(kn) |
Allowable pressure (MPa) |
Clamping range(mm) | Central height(mm) |
Rotational inertia (kg.m2) |
Rotating part weight(kg) | Whole unit weight(kg) |
| G700D-270 | 290 | 3.5 | 0.2-0.9 | 10-290 | 355 | 18 | 195 | 330 |
Company Profile
Lingman Machinery Technology (Changzhou) Co., Ltd. is an enterprise focusing on R&D, production and sales of various pneumatic chucks, electric chucks, hydraulic chucks and other power chucks. It is located in Hengshanqiao Intelligent Equipment Industrial Park, Tianning District, Changzhou City, Jiangsu Province. We are near Shanghai and has extremely convenient transportation conditions. 2 hours to reach the Shanghai port. With production equipment and innovative design capabilities, it can provide users with Satisfactory service. We can also design and produce all kinds of machine tools, non-standard equipment, special power fixtures and chucks for laser pipe cutting machines according to different user needs. The company is based on technological innovation, service quality first business philosophy, to provide each customer with suitable products, caring services, continuous technical research and development, full implementation of quality management, continuous improvement of the service system, and look forward to winning new and old customers favor.
Our Advantages
1. More than 20 years industry experience.
2. Professional R&D team.
3. Rapid update.
4. High precision products.
5. Customized products.
