| MOQ: | 10 |
| Price: | USD3000-6000/SETS |
| Standard Packaging: | wood box |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | 1000sets/month |

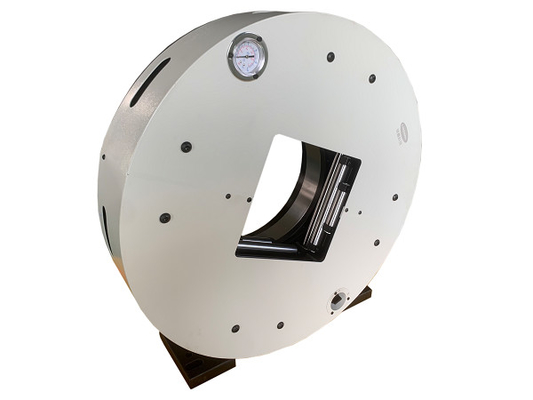

Simple pneumatic double-action laser chuck for tube-sheet integrated-HSG/XT /Jiatai /PENTA CHUTIAN/LONGXIN/han's laser
This product is specially designed for laser pipe cutting equipment. The product itself can be used as an independent rotating spindle, with a chuck in the middle that can firmly clamp the workpiece and rotate at the same time. It can realize fast clamping and unclamping by rotating air intake from the side. , Disconnect the air source before working. The product adopts the cylinder to directly output, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Since the cylinder is used to directly clamp the workpiece, the working stroke of the cylinder is the working stroke of the chuck, and the clamping range is wide. The cylinder is directly output, and the output force is linearly proportional to the air pressure, which is easy to realize software control. The chuck has simple structure, small number of components, light weight, low failure rate, stable performance, small moment of inertia, and low energy consumption. The axial size of the chuck is small, and the cost of zero tailing is lower.
The product is designed with a square middle hole. Compared with a round hole chuck, the size of the square tube is enlarged and
the scope of application is enlarged.
| 型号 Model |
爪行程/直径 mm Claw stroke/ diameter |
最大夹紧力KN Maximum clamping force |
许用压力MPa Allowable pressure |
极限转速r/min Limit speed |
夹紧范围mm Clamping range |
中心高mm Central height |
转动惯量Kg.m2 Rotational inertia |
转动部分重量 Kg Rotating part weight |
整机重量Kg Whole unit weight |
| G400JF-170 | 154 | 1.2 | 0.4-0.9 | 500 | ∲16-∲170 | 260 | 1.72 | 89 | 144 |
| G600JF-230 | 220 | 1.7 | 0.4-0.9 | 500 | ∲10-∲230 | 350 | 4.5 | 141 | 219 |
| G800JF-360 | 180 | 4.5 | 0.4-0.9 | 500 | ∲5-∲360 | 430 | 17.19 | 303 | 452 |
| 规格 Specifications |
A | B | B1 | C | D | E | F | G | H | I | J | K | L | O | R | S |
| G400JF-170 | 500 | 260 | 510 | 515 | 164.5 | 100 | 440 | 175.5 | 250 | 325 | 355 | 30 | 170 | 16 | 12-M8 | 18 |
| G600JF-230 | 520 | 350 | 680 | 690 | 191 | 120 | 460 | 194.5 | 330 | 376 | 402 | 29.5 | 230 | 20 | 12-M8 | 18 |
| G800JF-360 | 680 | 430 | 820 | 840 | 205 | 150 | 620 | 257 | 510 | 523 | 539 | 25 | 360 | 9 | 16-M8 | 18 |
|
|
| MOQ: | 10 |
| Price: | USD3000-6000/SETS |
| Standard Packaging: | wood box |
| Delivery Period: | 30days |
| Payment Method: | T/T |
| Supply Capacity: | 1000sets/month |
Simple pneumatic double-action laser chuck for tube-sheet integrated-HSG/XT /Jiatai /PENTA CHUTIAN/LONGXIN/han's laser
This product is specially designed for laser pipe cutting equipment. The product itself can be used as an independent rotating spindle, with a chuck in the middle that can firmly clamp the workpiece and rotate at the same time. It can realize fast clamping and unclamping by rotating air intake from the side. , Disconnect the air source before working. The product adopts the cylinder to directly output, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Since the cylinder is used to directly clamp the workpiece, the working stroke of the cylinder is the working stroke of the chuck, and the clamping range is wide. The cylinder is directly output, and the output force is linearly proportional to the air pressure, which is easy to realize software control. The chuck has simple structure, small number of components, light weight, low failure rate, stable performance, small moment of inertia, and low energy consumption. The axial size of the chuck is small, and the cost of zero tailing is lower.
The product is designed with a square middle hole. Compared with a round hole chuck, the size of the square tube is enlarged and
the scope of application is enlarged.
| 型号 Model |
爪行程/直径 mm Claw stroke/ diameter |
最大夹紧力KN Maximum clamping force |
许用压力MPa Allowable pressure |
极限转速r/min Limit speed |
夹紧范围mm Clamping range |
中心高mm Central height |
转动惯量Kg.m2 Rotational inertia |
转动部分重量 Kg Rotating part weight |
整机重量Kg Whole unit weight |
| G400JF-170 | 154 | 1.2 | 0.4-0.9 | 500 | ∲16-∲170 | 260 | 1.72 | 89 | 144 |
| G600JF-230 | 220 | 1.7 | 0.4-0.9 | 500 | ∲10-∲230 | 350 | 4.5 | 141 | 219 |
| G800JF-360 | 180 | 4.5 | 0.4-0.9 | 500 | ∲5-∲360 | 430 | 17.19 | 303 | 452 |
| 规格 Specifications |
A | B | B1 | C | D | E | F | G | H | I | J | K | L | O | R | S |
| G400JF-170 | 500 | 260 | 510 | 515 | 164.5 | 100 | 440 | 175.5 | 250 | 325 | 355 | 30 | 170 | 16 | 12-M8 | 18 |
| G600JF-230 | 520 | 350 | 680 | 690 | 191 | 120 | 460 | 194.5 | 330 | 376 | 402 | 29.5 | 230 | 20 | 12-M8 | 18 |
| G800JF-360 | 680 | 430 | 820 | 840 | 205 | 150 | 620 | 257 | 510 | 523 | 539 | 25 | 360 | 9 | 16-M8 | 18 |
