| MOQ: | 1 Set |
| Price: | 2700 |
| Standard Packaging: | Wooden box |
| Delivery Period: | 15 work days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 50 Sets Per Week |

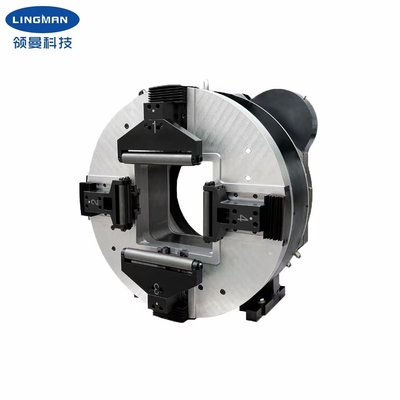

1. Description
Our company has 15 years of professional production of CNC lathes and laser cutting machine pneumatic rotary chuck experience of professional manufacturers. The chuck is the latest laser chuck designed for 2022.
The chuck itself can be operated as an independent rotating spindle. The new chuck has the following advantages: 1, reducer installation position can be adjusted arbitrarily; 2. The same collet size is suitable for processing coffins with a larger size range, which can be effectively used to clamp thin or fragile tubes to prevent flattening. Through the round hole limit, the clamping range is wider.
This latest pneumatic rotary chuck has the characteristics of simple structure, convenient installation, strong applicability, durable cleaning, reliable clamping, durable precision and so on. It can improve operation efficiency, reduce manufacturing cost and reduce labor intensity of employees. This pneumatic rotary chuck is suitable for professional pipe cutting machine, pipe plate machine and other clamping pipe fitting, suitable for all kinds of round pipe, square pipe, rectangular pipe, elliptical pipe cutting processing, slightly modify the claw can cut all kinds of pipe fitting pipe shape.
2. Performance Parameters
| Product name | Pneumatic rotary chuck |
| Model number | G360CF-130 |
| Claw stroke | 124mm |
| Maximum clamping force | 0.6KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 200/min |
| Clamping range | 4-128mm |
| Central height | 235mm |
| Rotational inertia | 1.42kg.㎡ |
| Rotating part weight | 71kg |
| Whole unit weight | 134kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G360CF-130 | 430 | 235 | 440 | 620 | 120 | 80 | 368 | 272 | 130 | 200 | 324 | / | / | 12-M6 | 18X33 |
4. Advantages
| a. Full stroke designed pneumatic rotary chuck |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available 1 Solid or hollow 2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
6. Production Line
|
|
