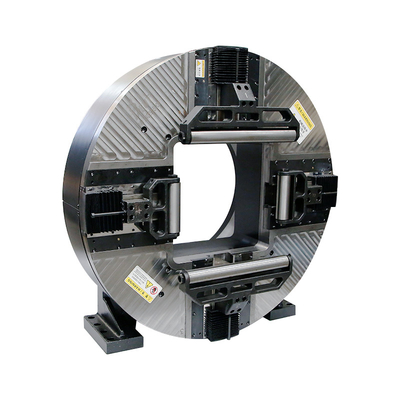

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting
  • name
  • name

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting

MOQ: 1
Price: 2400-5000 USD
Standard Packaging: Wooden Box
Payment Method: D/P, L/C, D/A, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets per month
Details Information
Product Description
Detail Information
Brand Name
Lingman
Model Number
F245DF
Application:
Laser Cutting
Core Components:
Bearing
Center Height Of Turret:
315
Number Of Jaws:
4
Stroke:
236mm
Allowable Pressure:
0.2-0.9Mpa
Limit Speed:
150R/Min
Clamping Range:
6-242mm
Max. Clamping Force:
2.1KN
Weight:
250KG
Highlight:

Professional Rotate Air Square Chuck

,

Pneumatic Air Square Chuck

,

Laser Pipe Cutting Air Square Chuck

Product Description

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 0



Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 1

1. Descripition



This laser rotary chuck is specially designed for laser pipe cutting machine. The product itself can be used as an independent rotating spindle, with a chuck in the middle, which can firmly clamp the workpiece when rotating. Quick clamping and loosening can be achieved by turning the air inlet sideways. The air source must be disconnected to work. The laser rotary chuck has a clamping stroke of 220 mm and a center height of 350 mm. It has the characteristics of simple structure, convenient installation, strong applicability, clean and durable, reliable clamping and durable precision. It can improve operation efficiency, reduce manufacturing cost and reduce labor intensity of employees.


The kind of laser rotary chuck has high mechanical efficiency, small energy loss, large locking force output and stable locking force, and has strong competitiveness compared with similar products on the market.





2. Dimensions



Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 2Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 3Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 4




3. Production Line



Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 5

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 6





4.Production Navigation

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 7



5. Certification

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 8



6. Partner

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 9

Pneumatic Professional Rotate Air Square Chuck For Laser Pipe Cutting 10



Tags:

Pneumatic 4 jaw metal lathe chuck,

160mm pneumatic rotary chuck,

4.5KN 100mm 4 jaw independent chuck
