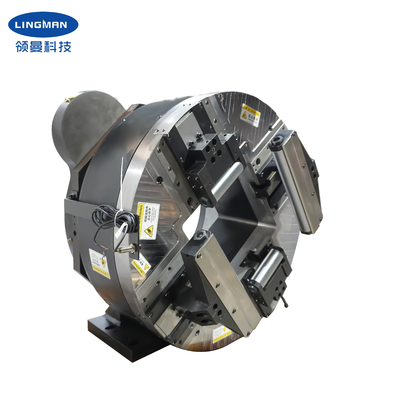

290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter
  • name
  • name
  • name
  • name
  • name
  • name

290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter

MOQ: 1 Set
Price: USD 4800 set
Standard Packaging: Wooden case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union, MoneyGram
Supply Capacity: 10 set per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
LINGMAN
Certification
Provided
Model Number
F290DF
Max Clamping Force:
3.5KN
Stroke:
290mm
Package:
Wooden Cases
Allow Pressure:
0.2-0.9MPa
Clamping Range:
10-290mm
Rotational Inertia:
18kg.㎡
Precision:
0.05mm
Central Height:
355mm
Rotating Part Weight:
195kg
Machine Weight:
330kg
Product Description

290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 0

Lingman Machinery Technology (Changzhou) Co., Ltd. was established on June 8, 2020 and has passed ISO9001:2015 quality management system certification. It is an enterprise that focuses on R&D, production and sales of various power clamps and chucks for laser pipe cutting machines, pneumatic chucks, electric chucks, hydraulic chucks, digital chucks and other power chucks. The company will create a 4,000-square-meter production base. It is estimated that 20 million yuan will be invested in production and processing equipment, plant construction and raw material costs within 2 to 3 years. The company has a professional technical R&D team and innovative R&D and design capabilities.

290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 1

290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 2

Model
F290DF
Claw stroke
290mm
Max clamping force
3.5KN
Allowable pressure
0.2-0.9MPa
Clamping range
10-290mm
Central height
355mm
Rotational inertia
18kg.m2
Rotating part weight
195kg
Whole machine weight
330kg

290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 3290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 4290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 5

290mm Precision Square Hole Full Stroke CNC Front Chuck for Tube Cutter 6
