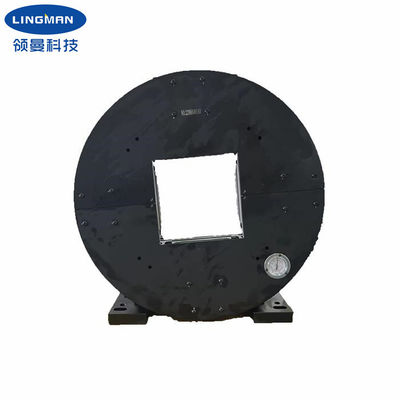

Lingman Stainless Steel Rotating Pneumatic Main Chuck for Laser Pipe Cutting Machine Direct Sales From the Machine Manufacturer

MOQ:	1 Set
Price:	USD 2571 set
Standard Packaging:	Wood carton
Delivery Period:	10-15 work days
Payment Method:	T/T, L/C
Supply Capacity:	500 set per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

LINGMAN

Certification

Provided

Model Number

F170JF

Place Of Origin:

Changzhou, Jiangsu, China

Brand Name:

Lingman

Model NumF245DFber:

F170JF

Product Name:

F170JF Laser Chuck

Claw Stroke:

154mm

Maximum Clamping Force:

1.2KN

Allowable Pressure:

0.25-0.9MPa

Limit Speed:

200r/min

Clamping Range:

16-170mm

Central Height:

260mm

Rotational Inertia:

1.72kg.㎡

Highlight:

0.25-0.9Mpa Pressure Laser Chuck, 154mm Claw Stroke Pneumatic Chuck, 1.2KN Clamping Force Front Chuck

Rotating Part Weight:

Whole Unit Weight:

144kg

Product Description

Rotary Full Stroke Pneumatic Laser Chuck for Pipe Cutting Machine

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

This model laser chuck is designed for laser pipe cutting equipment, four jaw full stroke main chuck. The chuck itself can be operated as an independent rotating spindle. After the product base is fixed, it only needs to connect the supporting motor and gear, and then connect the compressed air source (0.25-0.9mpa) to clamp the workpiece and drive the workpiece to rotate. Chuck full stroke operation, no need to adjust the position of the four jaws. The chuck adopts a fully enclosed structure with cross roller bearings. Compared with similar products on the market, the chuck has higher rotation accuracy and repetition accuracy, as well as higher gripping force.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

2. Performance Parameters

Model number	F170JF
Claw stroke	154mm
Maximum clamping force	1.2KN
Alloable pressure	0.25-0.9MPa
Limit speed	200/min
Clamping range	φ16-φ170mm
Central height	260mm
Rotational inertia	1.72kg.㎡
Rotating part weight	89kg
Whole unit weight	144kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

3. Dimensions

Lingman Stainless Steel Rotating Pneumatic Main Chuck for Laser Pipe Cutting Machine Direct Sales From the Machine Manufacturer 0

Lingman Stainless Steel Rotating Pneumatic Main Chuck for Laser Pipe Cutting Machine Direct Sales From the Machine Manufacturer 1

Specifications	A	B	B1	C	D	E	F	G	H
F170JF	500	260	510	515	164.5	100	440	175.5	250

4. Advantages

a. Full stroke design

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.

b. Professional design team work with you.

c. Professional QC team to guarantee the high quality.

d. Providing OEM & ODM service.

6. Production Line
