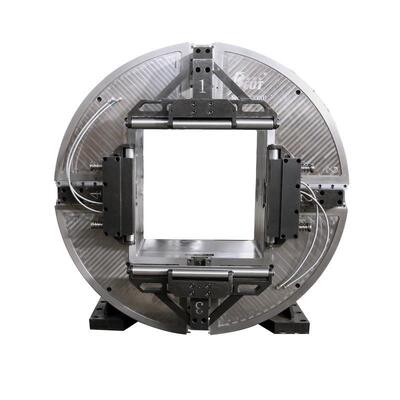

Side-Mounted Heavy Duty Pneumatic 640mm Chuck For Fiber Laser Cutting
  • name

Side-Mounted Heavy Duty Pneumatic 640mm Chuck For Fiber Laser Cutting

MOQ: 1 set
Price: USD 3200 set
Standard Packaging: Wood carton
Delivery Period: 10-15 work days
Payment Method: T/T, L/C
Supply Capacity: 500 sets per month
Details Information
Product Description
Detail Information
Place of Origin
Changzhou, Jiangsu, China
Brand Name
Lingman
Model Number
F640DF
Product Name:
F640DF Laser Chuck
Jaw Stroke:
576mm
Maximum Clamping Force:
25KN
Allowable Pressure:
0.3-0.9MPa
Limit Speed:
25r/min
Clamping Range:
44-620mm
Central Height:
880mm
Rotational Inertia:
535kg.㎡
Product Description
Rotary Full Stroke Pneumatic Laser Chuck for Pipe Cutting Machine

1. Description



Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.



This model laser chuck is designed for laser pipe cutting equipment, four jaw full stroke main chuck. The chuck itself can be operated as an independent rotating spindle. After the product base is fixed, it only needs to connect the supporting motor and gear, and then connect the compressed air source (0.3-0.9mpa) to clamp the workpiece and drive the workpiece to rotate. Chuck full stroke operation, no need to adjust the position of the four jaws. The chuck adopts a fully enclosed structure with cross roller bearings. Compared with similar products on the market, the chuck has higher rotation accuracy and repetition accuracy, as well as higher gripping force.



The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.



2. Performance Parameters



Model number

 F640DF
Jaw stroke 575mm
Maximum clamping force 25KN
Alloable pressure 0.3-0.9MPa
Limit speed 25r/min
Clamping range 44-620mm
Central height 880mm
Rotational  inertia

535kg.㎡
Rotating part weight 1650kg
Whole unit weight 3500kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.



​3. Dimensions


Side-Mounted Heavy Duty Pneumatic 640mm Chuck For Fiber Laser Cutting 0





4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



6. Production Line

Side-Mounted Heavy Duty Pneumatic 640mm Chuck For Fiber Laser Cutting 1
