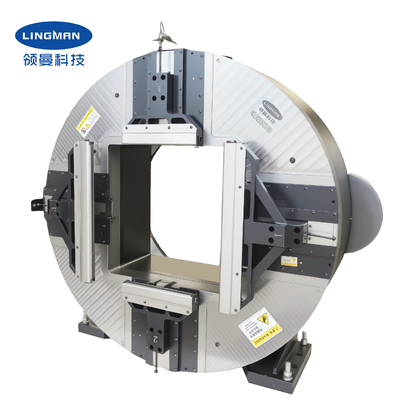

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

MOQ:	1 Set
Price:	USD 2500 set
Standard Packaging:	Wood carton
Delivery Period:	10-15 work days
Payment Method:	T/T, L/C
Supply Capacity:	500 set per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

LINGMAN

Certification

Provided

Model Number

F130DF

Product Name:

Precision Square Hole Full Stroke Front Chuck

Claw Stroke/diameter:

124mm

Maximun Clamping:

0.6KN

Allowable Pressure:

0.2-0.9

Limit Speed:

200r/min

Clamping Range:

4-128mm

Central Height:

235mm

Rotational Inertia:

1.42kg.m²

Rotating Part Weight:

Whole Unit Weight:

134kg

Product Description

LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

2. Performance Parameters

Product Name	Precision Square Hole Full Stroke Front Chuck
Claw stroke/diameter	124mm
Maximun clamping	0.6KN
Allowable pressure	0.2-0.9
Limit speed	200r/min
Clamping range	4-128mm
Central height	235mm
Rotational inertia	1.42kg.m²
Rotating part weight	71kg
Whole unit weight	134kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
LINGMAN 4 Jaw Lathe Chuck Front Mount Self-centering Lathe Chuck Full-travel Main Chuck square Hole Type

4. Advantages

a. Full stroke design

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.

b. Professional design team work with you.

c. Professional QC team to guarantee the high quality.

d. Providing OEM & ODM service.

6. Production Line
