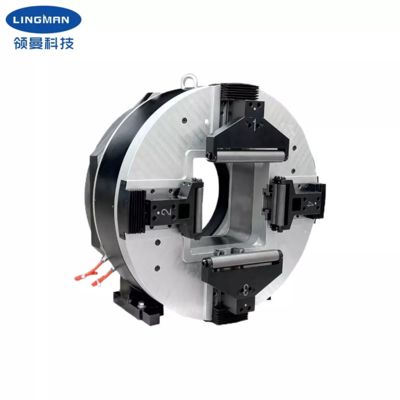

Name: Pneumatic chuck 5-175mm Through-hole Precision Main Chuck F175DF
Brand: Lingman Machinery Technology (Changzhou) Co., Ltd.
SKU: F175DF
Price: 1100 USD
Availability: InStock

MOQ:	1 Set
Price:	USD 1100 set
Standard Packaging:	Wood carton
Delivery Period:	10-15 work days
Payment Method:	T/T, L/C
Supply Capacity:	500 set per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

LINGMAN

Certification

Provided

Model Number

F175DF

Claw Stroke:

170mm

Maximum Clamping Force:

1.2KN

Allowable Pressure:

0.3-0.9MPa

Limit Speed:

200r/min

Clamping Range:

5-175mm

Central Height:

260mm

Rotational Inertia:

3.2Kg.m2

Rotating Part Weight:

125Kg

Whole Unit Weight:

190Kg

Product Description

Lingman F175DF Pneumatic chuck 5-175mm Through-hole Precision Main Chuck

1. Description

Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.

Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.

The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

2. Performance Parameters

Claw stroke/ diameter	170mm
Maximum clamping force	1.2KN
Allowable pressure	0.3-0.9MPa
Limit speed	200r/min
Clamping range	5-175mm
Central height	260mm
Rotational inertia	3.2kg.m²
Rotating part weight	125kg
Whole unit weight	190kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
Pneumatic chuck 5-175mm Through-hole Precision Main Chuck F175DF

4. Advantages

a. Full stroke design

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.

b. Professional design team work with you.

c. Professional QC team to guarantee the high quality.

d. Providing OEM & ODM service.

6. Production Line
